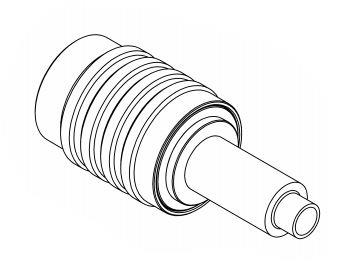

Radiall R180080016 Connectors STRAIGHT PUSH PULL PLUG CRIMP
Gender: Plug (Pin)
Polarity: Standard
Impedance: 50 Ohms
RF Series: NEX10
Body Style: Straight
Cable Type: K02252D, RD-316
Orientation: Straight
Contact Type: Male
Body Material: Brass
Mating Cycles: 100 Cycles
Insertion Loss: 0.05 dB
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 500 V
Contact Plating: Silver
Contact Material: Beryllium Copper
Maximum Frequency: 20 GHz
Termination Style: Crimp
Coupling Mechanism: Push Pull
Contact Termination: Crimp
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
