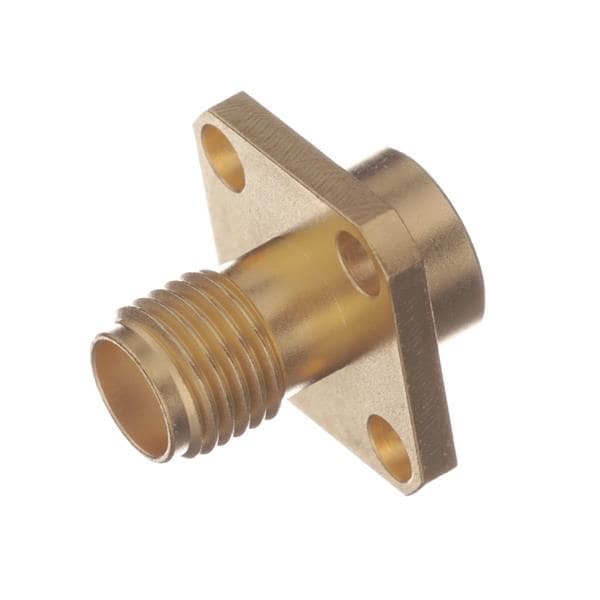

Radiall R125272000W Panel Receptacles SMA / STRAIGHT SQUARE FLANGE JACK CRIMP AND SOLDER TYPE - CABLE 2.6/50 S
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: SMA
Body Style: Straight
Cable Type: RG-316, 174, 174 FTX, 188, KX22A, KX3B
Body Finish: Gold
Orientation: Straight
Unit Weight: 8.233 g
REACH - SVHC: Details
Body Material: Stainless Steel
Mating Cycles: 500 Cycles
Mounting Style: Flange Mount
Voltage Rating: 250 V
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 12.4 GHz
Termination Style: Crimp
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
