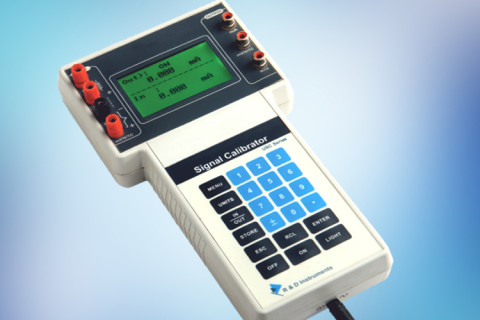

R&D Instruments USC Signal Calibrator

Application:
Ideal for calibrating thermocouples, RTD, indicators, controllers,
transmitters, receivers and mA, mV, V, ohms measuring instruments
Current Terminal Input
Protection : Fuse: 100mA / 250V
Memory Function : 9 set of values for each parameter in generation
Backlight : LED Backlight
Power Supply : Li-ion Rechargeable Battery
Low Battery Indicator : Yes
Battery Backup : 18 hours @ no load condition
11 hours 30 mins. @ 20mA with 850 ohm load
Loop Power Supply : 24V ±10%
Operating Temperature : 10 to 50°C
Instrument Casing : ABS Plastic
Instrument Dimensions : 250 mm x 140 mm x 45 mm (LxWxD)
Instrument Weight : 500 gms
Standard Delivery
1. Instrument : 1 no.
2. Carrying Pouch : 1 no.
3. Test Lead (2 wire) : 2 nos.
4. Test Lead (3 wire) : 1 no.
5. Charger : 1 no.
6. User Manual : 1 no.
7. Traceable Calibration Certificate
Optional:
Accredited (NABL) Calibration Certificate as per ISO/IEC 17025:2005 Standard

Datasheet
