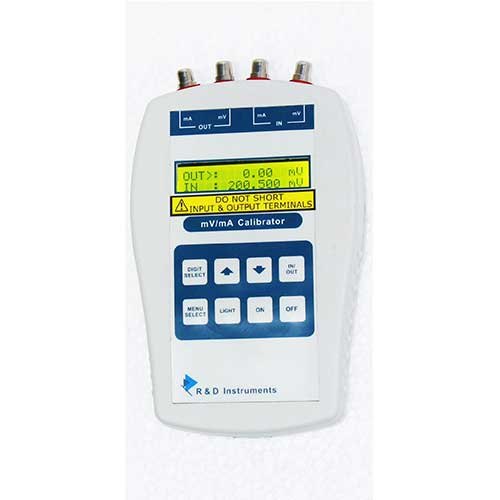

R&D Instruments mA Loop Calibrator

Application:
Ideal for calibrating indicators, controllers, transmitters,
receivers and mA measuring instruments.
Current Terminal Input
Protection : Fuse: 100mA / 250V
Backlight : LED backlight
Power supply : Li-ion Rechargeable Battery
Low Battery Indicator : Yes
Maximum load : 850 ohm @ 20mA
Battery backup : 40 hours @ no load condition
11 hours @ 20mA with 850 ohm load
Loop power supply : 24V ±10%
Operating Temperature : 10 to 50°C
Instrument Casing : ABS Plastic
Instrument Dimensions : 180 mm x 110 mm x 35 mm (LxWxD)
Instrument Weight : 350 gms
Standard Delivery
1. Instrument : 1 no.
2. Carrying Pouch : 1 no.
3. Test Lead (2 wire) : 2 nos.
4. Charger : 1 no.
5. User Manual : 1 no.
6. Traceable Calibration Certificate
Optional:
Accredited (NABL) Calibration Certificate as per ISO/IEC 17025:2005 Standard
