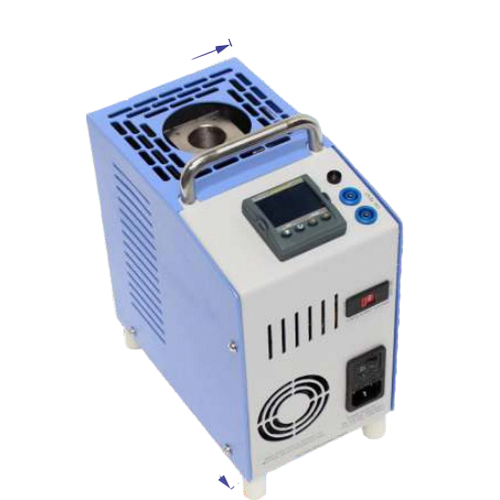

R&D Instruments 400 TS Dry Block Temperature Calibrator (30~400°C, ±0.1°C)

Resolution: 0.1°C

Units: °C / °F Switchable

Display: LED Green & Orange

Power Supply: 230V AC ± 2.5% / 50 Hz, 1.6 KW or 115V AC± 2.5% / 60 Hz, 1.2 KW

Radial Uniformity: @50°C ± 0.05°C / @ 50°C ± 0.05°C

@650°C ± 0.1°C / @ 400°C ± 0.1°C

Immersion Diameter: 25.4 mm

Immersion Depth: 120 mm

Dimensions with Bush: 120 x 200 x 225 mm (WxDxH)

Weight (Approx.): 5.8 kg (650 TS); 4.4 kg (400 TS)

Switch Test: Provided

Range : 30 to 400°C

Accuracy : ±0.6°C

Bath Stability : ±0.1°C

Stabilisation Time : 12 Min.

Heating Time(ambient to 400°c) : 5 minutes

Cooling Time(400 to 100°C) : 18 minutes

Standard Delivery

1. Instrument : 1 no.

2. Power Cable : 1 no.

3. Carrying Bag : 1 no.

4. Test Lead (2 wire) : 1 no.

5. Insertion Tube : Dual Hole - 1 x 1/4" + 1 x 12.5 mm,

Dual Hole - 1 x 1/4" + 1 x 8.2 mm

6. Insertion Tool : 1 no.

7. Spare Fuses : 8A, 15A - 2 nos. each

8. User Manual : 1 no.

9. Traceable Calibration Certificate

Optional

- Multi hole insertion tube: Custom built

- Accredited (NABL) Calibration Certificate as per ISO/IEC 17025:2005 Standard

- Carrying Case
