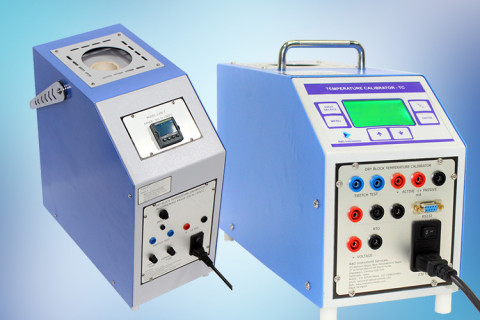

R&D Instruments 1200TS Dry Block Temperature Calibrator

Application
Ideal for calibration of thermocouples, RTD, gauges,
thermometers, switches, transmitters, etc.
Technical Specification
Range : 300 to 1200 °C
Resolution : 0.1°C upto 999.9°C & 1°C above 999.9°C
Accuracy : ±2°C
Units : °C / °F (Switchable)
Stability : ±0.5°C
Stabilization time : 15 mins
Display : LED
Well Diameter : 33 mm
Immersion Depth : 130 mm
Heating time(ambient to max) : 60 to 75 mins
Cooling Time (to 300°C) : 120 to 150 mins
Voltage : 230VAC
Supply Frequency : 50 Hz
Display : LED
Insert Options : Special drilling available on customer requirements
Dimensions(not including handle) : Height: 305mm
Width: 175mm
Depth: 260mm
Weight : 10Kg
Standard Delivery
1. Instrument : 1 no.
2. Power Cable : 1 no.
3. Test Lead (2 wire) : 1 no.
4. Multi Hole Insertion Tube : 1x25 mm+ 2x7 mm + 2x4 mm
(Please consult us for other sizes)
5. Insertion Tool : 1 no.
6. Spare Fuses : 500 mA, 6A, 10A - 2 nos.
7. Insulator
8. User Manual : 1 no.
9. Traceable Calibration Certificate
Optional
- Custom Built Insertion Tube
- Accredited (NABL) Calibration Certificate as per ISO/IEC 17025:2005 Standard
