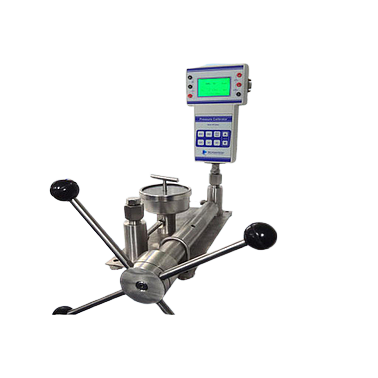

R&D Instrument APCCK 1000 High Pressure Comparator Kit (Hydraulic, 0~1000 bar ; 0.05%)

Over Pressure Alarm : 5% of Full Scale
Pressure Media : Compatible to 316 Stainless Steel
Current Terminal Input
Protection : Fuse: 100mA / 250V
Display : Graphical Display
Backlight : LED Backlight
Power Supply : Li-ion Rechargeable Battery
Low Battery Indicator : Yes
Auto Power Off : 15 minutes
Battery Backup : 19 hours
Transmitter Supply : 24V DC±10% (Loop Powered)
Pressure Connection : 1/4" BSP Female
Operating Temperature : 10 to 50°C
Instrument Casing: ABS Plastic
Instrument Dimensions: 250 mm x 145 mm x 45 mm (LxWxD)
Instrument Weight : 650 gms
Specification:
Range: 0 to 1000 bar
Resolution: 0.1
Accuracy: ±0.05% of F.S.
Selectable Pressure Units: bar, kg/cm², MPa, mH2O, atm, psi, inHg, ftH2O, kPa
Measurements
Facility: mA2; Range: 0 to 50 mA; Resolution: 0.001 mA; Accuracy: ±0.025% of Reading + 10 µA
Facility: Volts; Range: 0 to 30 V; Resolution: 0.001 V; Accuracy: ±0.025% of Reading + 3 mV
Standard Delivery
1. Instrument - 1 no.
2. Comparison Pump - 1 no.
3. Test Lead (2 wire) : 2 nos.
4. Charger : 1 no.
5. User Manual : 1 no.
6. Traceable Calibration Certificate
7. Adapters : 1/8” BSP (F) - 1 no., 1/4” BSP (F) - 2 nos., 3/8” BSP (F) - 1 no., 1/2” BSP (F) - 1 no.
8. ‘O’ Rings : To suit 1/4” / 3/8”, 1/2” - 5 nos.
9. Metal Washers : To suit 1/4” / 3/8”, 1/2” - 3 nos
Optional
1. RS 232 with RnD CAL-P Software
2. Accredited (NABL) Calibration Certificate
as per ISO/IEC 17025:2005 Standard
3. Adaptors: 1/4" BSP (M) x 1/8" NPT (F),
1/4" NPT (F), 3/8" NPT (F) & 1/2" NPT
Comparison Pump - CP 1000
Generation of Pressure: Up to 1000 bar
Medium: Water or Hydraulic Oil
End Connection: ¼” BSP (F) for Test & Master Gauges
Volume of the reservoir: 120 ml
Weight of the Comparator: 10.6 kg
Weight of the Comparator with APC Instrument & Accessories: 11.3 kg
Dimension of the Comparator: 320 mm (W) X 440 mm (D) X 150 mm (H)
