Supply Voltage: AC220V（50/60HZ）/1000W
XYZ Axis Operation Range: 400/400/100mm
XYZ Axis Max Operation Speed: 1000/1000/300 （mm/sec）
XYZ Axis Repeat Positioning Accuracy: XY:±5μm/Z:±10μm
XYZ Axis Acceleration: 1.0g/1.0g/0.5g
XYZ Drive Mode: servo motor + high precision lead screw module
Z Axis Load Capacity: 5 kg
Y Axis Load Capacity: 10 kg
Programming: vision guided programming
Visual Positioning System: Camera over 1.3 MP
Light Source: coaxial light source（optional：circular）
Altimetry: Laser altimetry（optional）
Operating temperature: 0～40℃
Conditions humidity: 20％～90％（no condensation）
Dimensions W×D×H: 630*690*680mm
Weight: 120 kg
Features:
Professional dispensing control software to ensure dispensing consistency
Highly rigid one-piece welding frame tested by mechanical analysis
Optional laser height measurement system, height of Zaxis can be automatically calibrated after workpiece is deformed
Optional workpiece heating system to enhance the fluidity of the coating when filling the bottom
Support MES data association
Specular stainless steel process to meet Class 100 dustfree and Class 1000 clean environment standards（QT300S)；

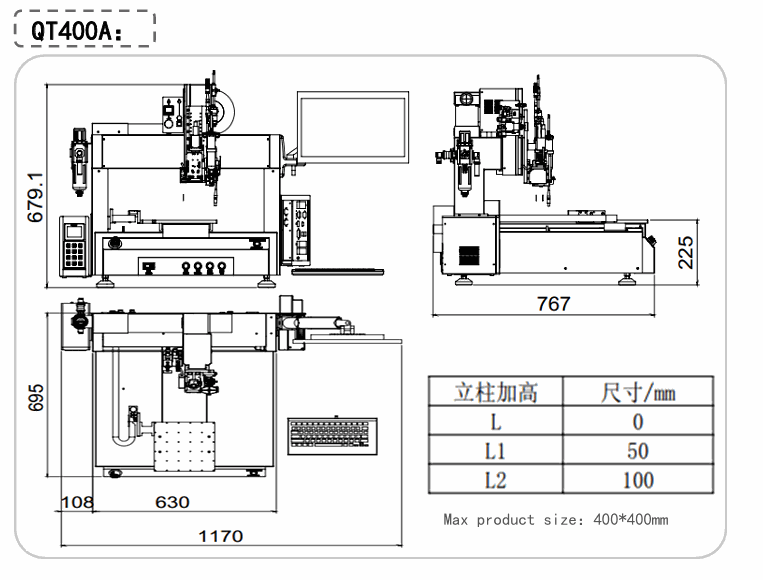

Dimension
Datasheet
