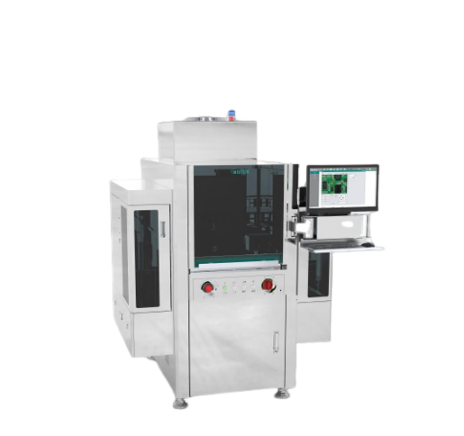

Cleanliness of operation area: Class 100（Class 1000 workshop）
Dispensing area: XY（Max）：200X120mm(can be customized）
Z axis operation range XY（Max）： 50mm
Repeat accuracy: XYZ：±10μm
Positioning accuracy: XY：±15μm
Max speed: XY：1200mm/s
Acceleration: XYZ:1.5g/1.5g/0.5g
Drive system: XY linear motor + Z servo motor
Load capacity of track: 5kg
Size of box: W≤200mm，D≤130mm，H≤160mm
Number of boxes: ≈5Pcs(depends on width of box）
Thickness of substrate: 0.5-6mm
Max height of component: Height of component on board：23mm； Height of component under board：23mm
Track conveying height: 920±30mm
Communication: SMEMA
Dimensions: L=1310mm 、W=1560mm 、H=1850mm
Weight: 1300kg
Voltage/Power: AC220V /3.0kW (no heating on track）
Features:
Linear motor and grating ruler combined drive and control system for high accuracy and high speed
Integrated vision system, dynamic light adjustment, visually generating work path
Freely switching between jet valve, piezoelectric valve, screw valve, cutting valve
High-precision electronic scale to meet automatic weighing, weight control, flow control
Dual-valve synchronized dispensing, following secondary valve X and Y adjustment and correction
Continuous software iteration, forward compatible
Stable and reliable one-piece casting frame,
Wider area of dispensing, compatible with more products of various sizes
