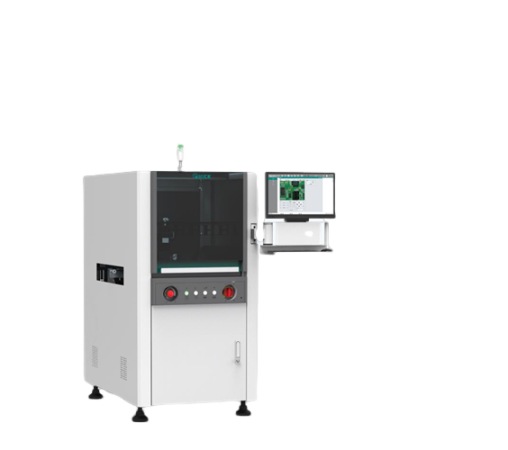

XYZ axis operation range: 400x570x50mm
Repeat accuracy: XYZ: ±10 μm
Positioning accuracy: XY: ±15 μm
Max speed: XY: 1200mm/s
Acceleration: XYZ: 1.5g/1.5g/0.5g
Drive system: XY linear motor + Z servo motor
Load capacity of track: 5kg
Track width range: Single track: 50-540mm; Double track: 50-220mm (rail 1 is fixed, rail 2 and 3 are fixed together as movable rail, rail 4 is movable rail);
*The minimum width of track is related to the width of the heating module
Thickness of substrate: 0.5-6mm
Visual positioning system: industrial camera over 1.3 MP
Light Source: Coaxial RGB light source (optional: circular)
Max height of component: Height of component on board: 40mm; Height of component under board: 23mm
Track conveying height: 920±40mm
Communication: SMEMA
Dimensions W×D×H: 800x1310x1530mm
Weight: 1200kg
Voltage/Power: AC220V(50/60Hz) /1.5kW (no heating on track）
Dispensing area: single track 350X440mm, double track 350*180mm
Max working range: single track 350*440mm double track 350*180mm
Synchronous dual valve_ automatic adjustment: single track 330*400mm, double track 330*155mm
Asynchronous dual valve: single track 295*410mm, double track 295*165mm
Tilting dispensing_tilt to left or right ±30°: single track 245*375mm, double track 245*155mm
Rotation & tilt_tilt to 4 directions: single track 280*375mm, double track 280*155mm
Features:
High-precision motion control system, support all kinds of interpolation of straight line, arc, ellipse, 3D helix, with ultra-high motion accuracy and operation range to control complex dispensing path
Highly stable integrated structure, firm and efficient, design of single and double track to optimize the production efficiency; self-developed control software for high utilization and high flexibility
Modular design, flexible options，using modular functional components based on industry standards, plug-and-play. A variety of functional modules can be freely combined, support quick replacement, assembly, tuning, with strong expandability
Self-developed fluid control software，with an intelligent control system based on algorithms, carrying a database of abundant process applications, and can set and adjust the parameters of dispensing according to types of processes, saving complex manual operation for precision dispensing 。
