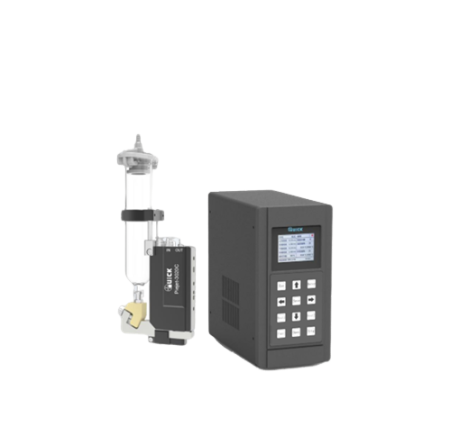

QUICK P3020C Piezoelectric jet valve (0.01-0.7Mpa)

Materials of wetted parts: stainless steel，PEEK

Max working frequency: 1000 Hz

Optimal feeding pressure: 0.01～0．7Mpa

Diameter of smallest point: 0.2mm

Optimal range of viscosity: 1～200000Cps

Dimensions: 77mm×25mm×126mm

Weight: 400g

Main body of valve: stainless steel

Seal: corrosion-resistant and heat-resistant materials

Max heating temperature: Room temperature-180℃

Features:

High precision：using advanced piezoelectric drive, highly consistent dispensing, minimum diameter of single point is 0.2mm, minimum amount of dispensing is 2nL；

High speed：highest stable dispensing frequency is 500Hz, maximum instantaneous jet frequency is 1000Hz, the valve can be switched on and off in a short period of time for short dispensing cycle, improving productivity

High consistency：advanced piezoelectric control system, the pin can maintain a stable impact force during operation, reducing scattering on dispensing straight lines, arcs, and irregular shapes, for highly consistent point of dispensing

High flexibility：intelligent control system, with automatic position calibration for the pin and nozzle, easy to operate, can perform coating on uneven surfaces, with wide range of applications, unique design of valve body, coating quality is outstanding
