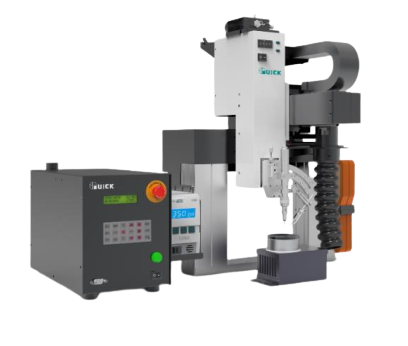

QUICK 9253N Welding robot

Power supply 110V/220V AC, 50/60Hz

300W . Power Consumption

Shaft No. 3

Movement range

X (mm) 0~200

Y (mm) 0~200

Z (mm): 0~100

R (degrees): --

Movement speed

X (mm/sec): 0.1~300

Y (mm/sec): 0.1~300

Z (mm/sec): 0.1~300

R (degrees/second): --

Repeatability

X/Y/Z (mm): ±0.02

R (degrees): --

Resolution

X/Y/Z (mm): 0.01

R (degrees): --

Z-Axis Load: 3Kg

Number of demo files Max 255 files, Max 60000 points

Qty file handling. Up to 128 files

Motion control: Control PCBA movement + Teaching Pendant

Noise level: 70dB（Measured within a distance 1m）

Operating environment

Temperature: 0～40℃

Humidity: 20％～90％ (No condensation)

Dimensions (mm)

Width: 470

Depth: 469

Height: 536

Temperature stability: ±3°

Weight: 36Kg
