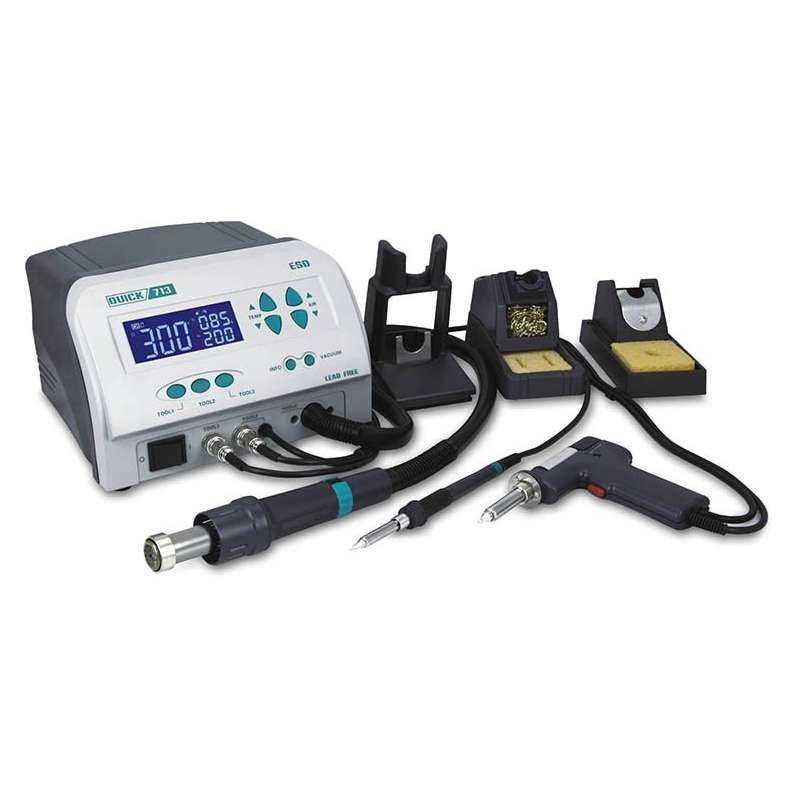

QUICK QUICK 713 Rework system

Soldering section:

- Power: 90W

- Temperature range: 200~480°C

- Sleep temperature range: 200°C

- Sleep time range: 1-99min

- Temperature stability: ±2°C (Stationary air, no load)

- Ambient temperature (Max): 40°C

- Tip to ground resistance: <2Ω

- Weight: About 7.9kg

Rework section:

- Power: 1000W

- Temperature range: 100~500°C

- Air volume: 1-120 Class

- Ambient temperature (Max): 40°C

- Temperature stability: ±2°C

Desoldering section:

- Heating power: 90W

- Temperature range: 200~480°C

- Pump: Diaphragm type

- Vacuum pressure: 600mmHg

- Sleep time range: 01-99min

Features:

1. Password lock function, with auto sleeping/shutoff function.

2. Digital temperature calibration, easy operation.

3. Suction pen inside hot air handle, convenient for using.

4. Brushless fan, adjustable, stepless and wire range of air volume, suitable for various occasions.

5. Built-in vaccum pump, powerful suction, no need of external vacuum system.
