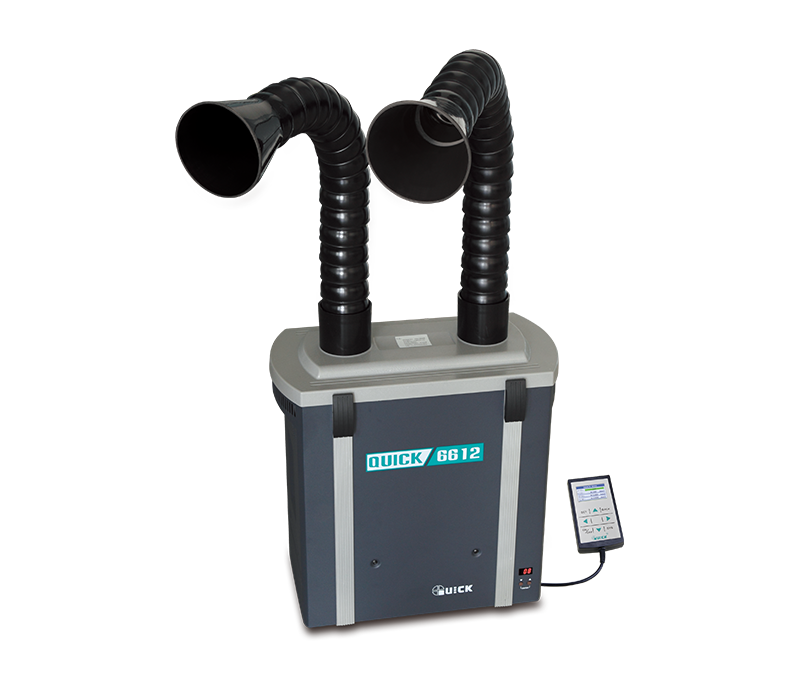

QUICK QUICK 6612 Fume Extractor

Voltage: AC220V

Power: 250W

Qty of Arrms: 2

System Airflow: 2*100m3/h (75 pipe diameter)

Filtering efficiency (0.3um): 99.97%

Arm length: φ75mmx1500mm

Stationary pressure: 2400 Pa

Noise: < 65dB

Dimensions (HxDxW): 470×230×500mm

Weight: About 15.5kg

Features:

1. Intelligent flow control: Through closed-loop control of flow, it ensures constant suction and saves consumables.

2. Intelligent peripherals (such as soldering robots/smart soldering stations) can control the operation and sleep of the purification system and are more energy efficient.

3. Intelligent control of the speed of the brushless motor, effectively improving the life of the motor.

4. The unique vortex wind wheel design has stronger suction.

5. Split filter design, longer filter life and lower cost of consumables.
