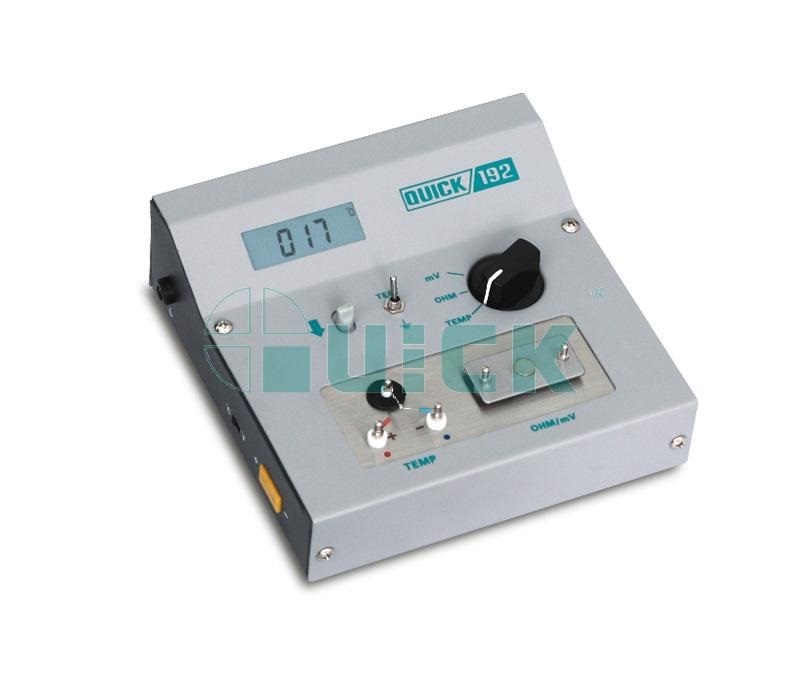

QUICK QUICK 192 Temperature Tester

- temperature:

+ Resolution: 1 ° C

+ Measuring range: 0~600°C (32°F~1200°F)

+ Precision: ±3°C/±6°F

+ sensor: K type thermocouple

- Voltage:

+ Resolution: 0.1mv

+ Measuring range: 0~90mv (AC)

+ Precision: ±(3% + 2 digits)

+ Compliance with MIL-STD-2000 standard

- impedance:

+ Resolution: 0.1Ω

+ Measuring range: 0~90Ω

+ Accuracy: ±(1% + 2 digits)

- display: L

+ iquid crystal: 3 1/2 LCD digital display

+ Out of range

- power: 1W

- Dimensions: 158(L) × 150(W) × 50(H)mm

- weight: About 1kg

- Operating environment: 0~40°C Relative humidity 0~80%

Features:

1. Accurately test the tip temperature, ground potential and ground impedance.

2. Two-in-one design, optional external sensor can be used to measure the temperature of the tin furnace or other liquids.

3. High-reliability microcomputer detection with high precision.

4. Comply with MIL-STD-2000 standard.
