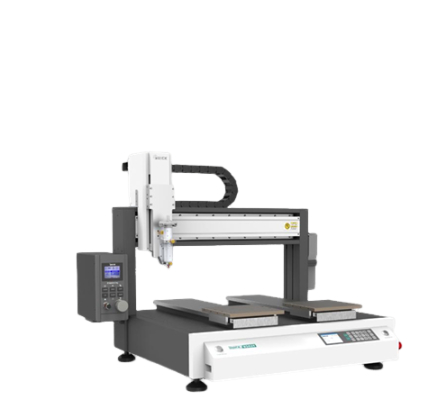

QUICK QUICK ET8583YA Desktop Dispenser (500/400/100mm)

Supply Voltage: 220VAC

Number of Axis: 3-axis

Operation Range: X/Y/Z axis: 500/400/100mm

Speed Range: X/Y axis: 0.1～800 （mm/sec)

Z axis: 0.1～300 （mm/sec）

Repeat Positioning Accuracy: ±0.01 mm

Load Capacity: Platform: 8Kg

Head（Z axis) : 2 kg（stepper motor +belt）

Speed Control: 3-dimensional linear, circular interpolation, automatic lifting speed adjustment with speed look-ahead

Capacity for Teaching Files: Up to 255, and 60000 for all points

Capacity for Processing Files: Up to 255

Operating Conditions: Temperature: 0～40℃; Humidity: 20％～90％（no condensation）

Dimensions W×D×H: 840*760*655mm

Weight: 60 kg

Features:

QUICK self-developed compact series E special motion platform, with high speed and high precision; applying noise suppression control for low noise level; Y-axis closed-loop control, with no pulse missing and high load capacity

Equipped with QUICK 982D precision dispensing controller, using imported high flow precision pressure reducing valve for higher pressure accuracy and faster dispensing response; built-in air storage tank to balance the instant pressure fluctuation at opening of valve for stable dispensing accuracy

Dual Y-axis to save waiting time for loading and unloading

With functions of communication, needle cleaning, starting point calibration

Dispensing/back suction air pressure warning and optional lack of adhesive warning

Inlet air pressure and dispensing air pressure are adjustable, can quickly supply dispensing pressure, fast response, high dispensing precision

With hand slide valve, the air source can be quickly cut off

Two-hand start buttons (optional), machine upper cover plate with bayonet for easy maintenance

Displaying processing files (up to 255), equipment status, number of dispensing in real-time, the processing program can be switched by pressing buttons
