Supply Voltage: 110VAC/220VAC
Number of Axis: 3-axis
Operation Range: X/Y/Z axis: 200mm/200mm/50mm
Speed Range: X/Y axis: 0.1～600 （mm/sec)
Z axis: 0.1～300 （mm/sec）
Repeat Positioning Accuracy: ±0.01 mm
Load Capacity: Platform:5 kg; Head:2 kg
Speed Control: 3-dimensional linear, circular interpolation, automatic lifting speed adjustment with speed look-ahead
Capacity for Teaching Files: Up to 255, and 60000 for all points
Capacity for Processing Files: Up to 255
Operating Conditions: Temperature: 0～40℃; Humidity: 20％～90％（no condensation）
Dimensions W×D×H: 480*530*480mm
Weight: 23kg
Features:

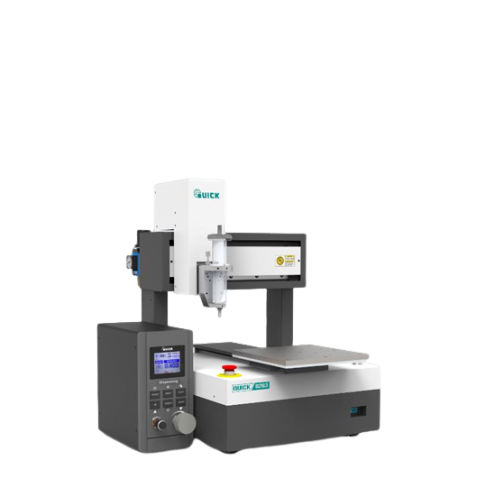

The motion platform uses a unique one-piece frame structure with high loading capacity, low noise level, good stability and precise speed control
Equipped with QUICK 982D precision dispensing controller, using imported high flow precision pressure reducing valve for higher pressure accuracy, faster dispensing; built-in air storage tank to balance the instant pressure fluctuation at opening of valve for stable dispensing accuracy
For cylinder dispensing, can apply to epoxy resin, solder paste, red glue, lubricant, UV adhesive, etc.
With functions of communication, needle cleaning, starting point calibration
Optional alarm prompt for dispensing/back suction air pressure and lack of adhesive
Simple appearance, small footprint, saving space
Inlet air pressure and dispensing air pressure are adjustable, can quickly supply dispensing pressure, fast response, high dispensing precision
Emergency stop switch for safety and reliability
With hand slide valve, the air source can be quickly cut off
Displaying processing files (up to 255), equipment status, number of dispensing in real-time, the processing program can be switched by pressing buttons
