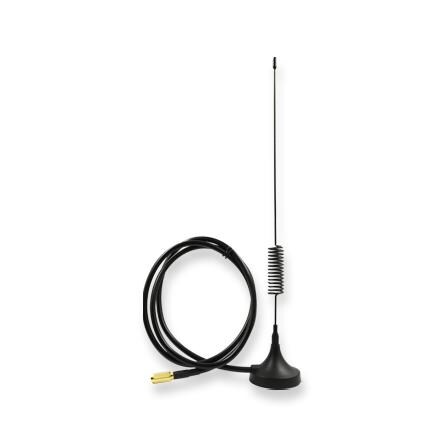

Quectel YXH001AA Passive Antenna External, 700-960, 1710-2690, 3300-5000, 5G, Whip with cable, 1000 (RG195) , SMA Male (center pin) , Magnetic, 285 45

Gain: 4.5 dBi

VSWR: 4

Style: Straight with Base

Width: 45 mm

Height: 0.85 mm

Length: 285 mm

Impedance: 50 Ohms

Cable Type: 1 M RG195

Application: Cellular Radio, Wireless Applications

Cable Length: 1 m

Mounting Style: Magnetic Mount

Number of Bands: 3 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz, 3500 MHz, 4500 MHz, 5500 MHz

Mechanical Style: Whip

Maximum Frequency: 5 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WLAN, WiMAX

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
