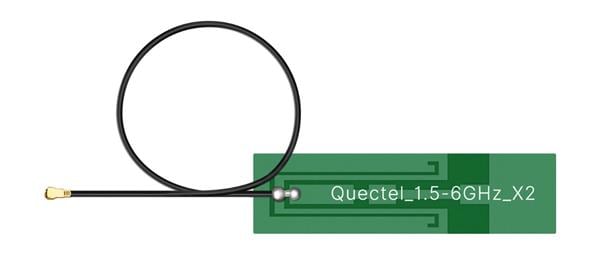

Quectel YP0009AA Passive Antenna Embedded, 1500-6000, 5G, PCB with cable, 193 +/-3, IPEX ?, Adhesive, 49 13 0.85 (not recommended)

Gain: 4.42 dBi

VSWR: 3

Style: I-Bar

Width: 13 mm

Height: 0.85 mm

Length: 49 mm

Impedance: 50 Ohms

Cable Type: 193 mm RF1.13

Application: Cellular Radio, Wireless Applications

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 1575 MHz, 1602 MHz, 1621 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz, 3500 MHz, 4500 MHz, 5500 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 6 GHz

Minimum Frequency: 1.5 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF4

Protocol - GPS, GLONASS: BEIDOU, GLONASS, GNSS, GPS

Protocol - WiFi - 802.11: WiMAX

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
