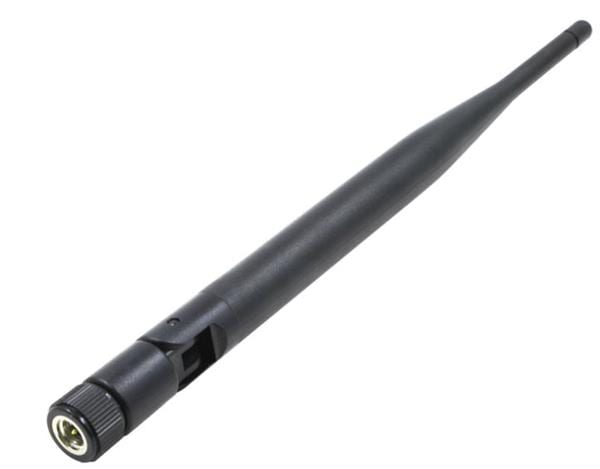

Quectel YE0038AA Passive Antenna External, 2400-2500 MHz, 5150-5850 MHz, Wi-Fi (Bluetooth), Dipole, -, SMA Male (center pin), Terminal, 195 13

Gain: 0 dBi

VSWR: 3

Style: Tilt/Swivel

Width: 37 mm

Height: 13 mm

Length: 195 mm

Impedance: 50 Ohms

Application: Cellular Radio, Wireless Applications

Mounting Style: Panel Mount

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: Whip

Maximum Frequency: 5.85 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, U-NII

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
