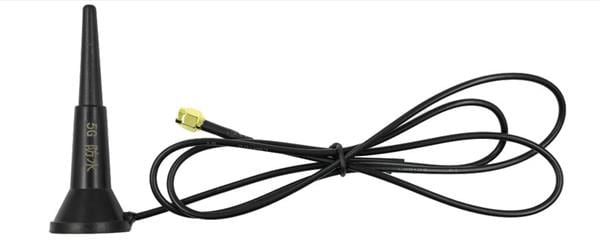

Quectel YE0037AA Passive Antenna External, 700-5000 , 5G, Monopole, 1000, SMA Male (center pin) , Magnetic, 88 F 30, LMR100

Gain: 1.8 dBi

VSWR: 2.5

Style: Straight with Base

Length: 88 mm

Diameter: 30 mm

Impedance: 50 Ohms

Cable Type: 1 M LMR100

Application: Cellular Radio, Wireless Applications

Mounting Style: Panel Mount

Number of Bands: 1 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz, 3500 MHz, 4500 MHz, 5500 MHz

Mechanical Style: Whip

Maximum Frequency: 5 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
