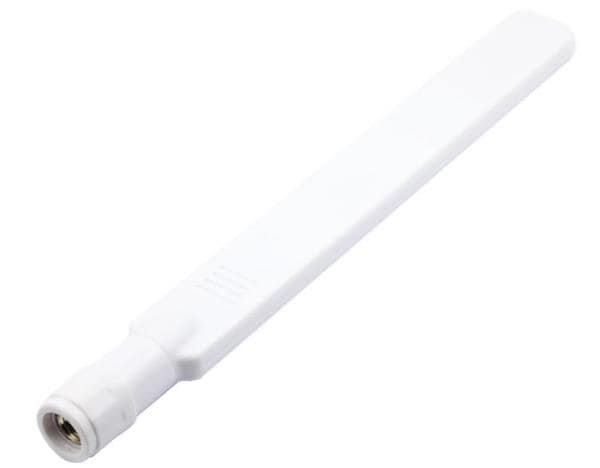

Quectel YE0002AA Passive Antenna External, 699-2700, LTE (4G), Dipole, -, RP-SMA Male (center receptacle) , Terminal, 174.6 19.2

Gain: 3 dBi

VSWR: 3

Style: Blade

Width: 19.2 mm

Height: 7.2 mm

Length: 174.6 mm

Impedance: 50 Ohms

Application: Cellular Radio, Wireless Applications

Mounting Style: Panel Mount

Number of Bands: 1 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz

Mechanical Style: Whip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 699 MHz

Termination Style: Connector

Protocol - Sub GHz: UHF

Antenna Connector Type: SMA Female

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
