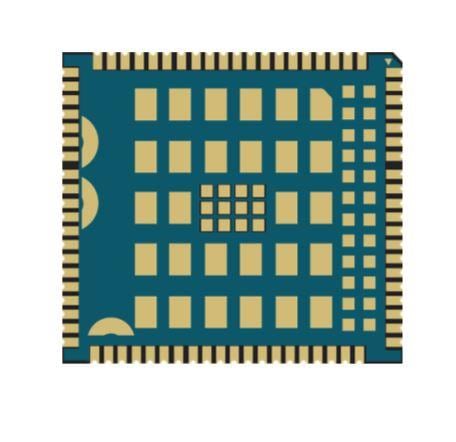

Quectel EC25EFATEA-512-STD GNSS, LTE Cat 4 External, LTE: 700-2700 MHz; Wi-Fi: 2400-5850 MHz;GNSS: 1561 MHz/1575.42 MHz/1602 MHz, LTE&GNSS&Wi-Fi1&Wi-Fi2, Combining, 1.5DSL=1000, GNSS:FAKRA_CLTE:FAKRA_DWi-Fi1:FAKRA_IWi-Fi2:FAKRA_I, Screw, F 120 43

Data Rate: 50 Mb/s, 150 Mb/s

Frequency: 700 MHz to 2.7 GHz, 1.561 GHz to 1.575 GHz, 2.4 GHz to 5.85 GHz

Dimensions: 32 mm x 29 mm x 2.4 mm

Interface Type: ADC, I2C, PCM, SDIO, SGMII, UART, USB 2.0

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 3.8 V

Antenna Connector Type: External

Protocol - GPS, GLONASS: GNSS

Operating Supply Voltage: 3.8 V

Supply Current Receiving: 19.5 mA

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 35 C

Protocol - Cellular, NBIoT, LTE: LTE Cat 4
