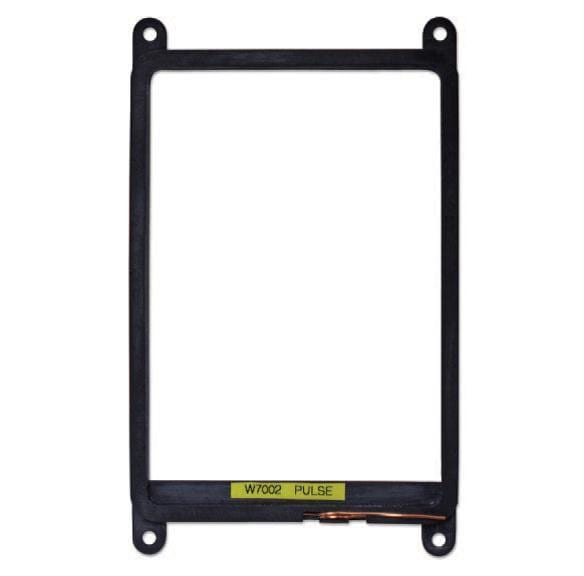

Pulse Electronics W7002 Passive Antenna NFC WIRE LOOP ANT PLASTIC CARRIER

Style: PCB Board

Width: 34 mm

Height: 0.1 mm

Length: 43 mm

Impedance: 50 Ohms, 80 Ohms

Cable Type: 0.52 mm Multithread Wire

Technology: NFC

Application: Pairing, Sharing, RFID

Unit Weight: 32.095 g

Cable Length: 20 mm

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 13.56 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 13.56 MHz

Termination Style: Connector

Protocol - Sub GHz: NFC

Antenna Connector Type: Molex Picoblade

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
