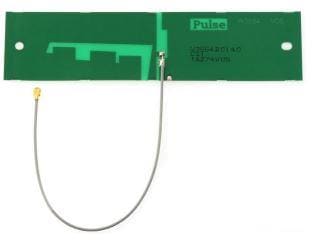

Pulse Electronics W3554B0170 Passive Antenna Monopole W/170mm Cbl 698-6000MHz

Gain: 1.9 dBi, 2.5 dBi, 3.2 dBi, 3.3 dBi, 3.5 dBi

Style: T-Bar

Width: 30 mm

Height: 0.2 mm

Length: 120 mm

Impedance: 50 Ohms

Cable Type: 170 mm RF1.13

Application: Cellular Applications, Satellite, Wireless Applications

Cable Length: 170 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Number of Bands: 5 Band

Center Frequency: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz,3550 MHz, 5600 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 6 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, RFID, U-NII

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: 802.11, LoRaWAN, SigFox, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
