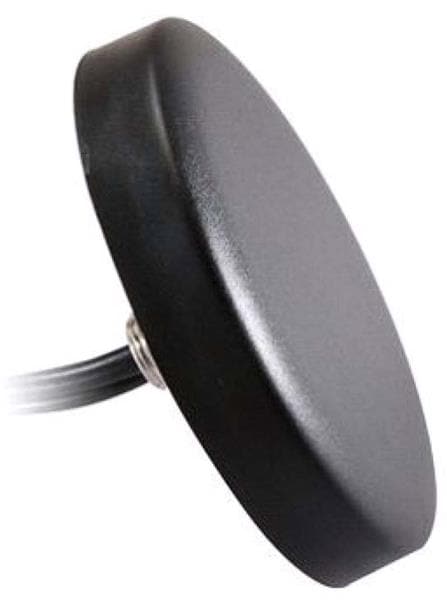

Pulse Electronics SWA2100 Multiband Antenna 2 x 4G LTE + GPS Module antenna REACH Compliant Active GPS/GLONASS 1575-1602MHz 28 +/- 2dB LNA 81.3mm D / 14.6mm H

Gain: 2 dBi, 2.5 dBi, 28 dBi

VSWR: 1.5, 2, 3

Style: Round

Height: 14.6 mm

Bandwidth: 960 MHz, 2170 MHz, 2690 MHz

Frequency: 698 MHz to 960 MHz, 1.71 GHz to 2.69 GHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: RG174

Application: LTE Cat M1, Cat 1 Devices

Polarization: Linear, RHCP

Mounting Style: Screw Mount

Frequency Range: 698 MHz to 2.69 GHz

Number of Bands: 3 Band

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA

Protocol - GPS, GLONASS: GPS, GLONASS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
