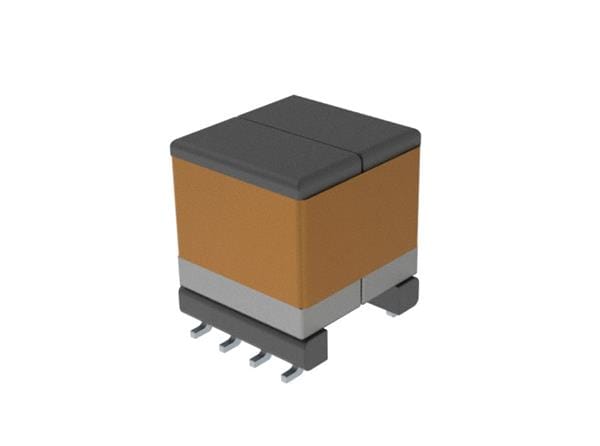

Pulse Electronics PH9496NLT Flyback Converter Transformer Flyback Converter Transformer 52-332uH 1.7A DCR=0.22Ohms 1:2.53

Width: 10.3 mm

Height: 12.5 mm

Length: 10.5 mm

Inductance: 52 uH, 332 uH

Turns Ratio: 1:2.53

Unit Weight: 700 g

Power Rating: 1.5 W

Mounting Style: SMD/SMT

Primary Winding: Single Primary Winding

Secondary Winding: Single Secondary Winding

Termination Style: SMD/SMT

Operating Frequency: 51 kHz to 69 kHz

Primary Voltage Rating: 8 V to 18 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
