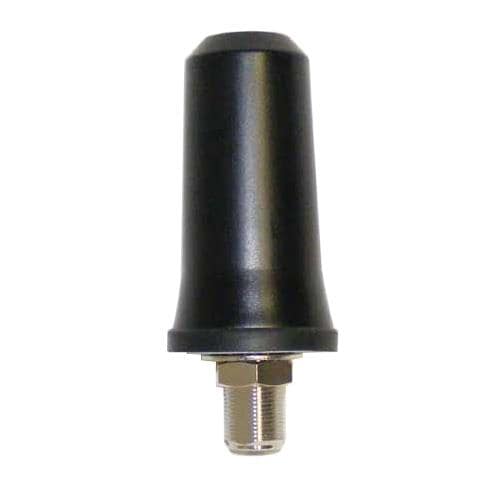

Pulse Electronics LPT698/2700DMN Passive Antenna Vert Outdoor Direct- Mnt Multiband Ant

Gain: 2.1 dBi, 3.1 dBi, 4.4 dBi

VSWR: 2.5:1, 2.1

Style: Straight

Length: 77.2 mm

Diameter: 40.9 mm

IP Rating: IP67

Impedance: 50 Ohms

Application: Transportation, Utility Boxes

Unit Weight: 120 g

Power Rating: 10 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 2 Band

Center Frequency: 830 MHz, 2.2 GHz

Mechanical Style: Whip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: N Female

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
