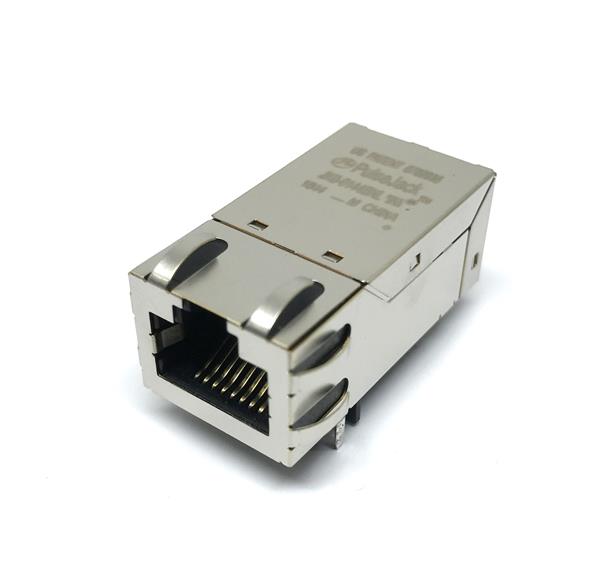

Pulse Electronics JK0-8001NL Modular CON RJ45 1X1 Tab up HDBaseT 30W PoE

Color: Black

Gender: Jack (Female)

Shielding: Shielded, EMI Fingers

USOC Codes: RJ45

Application: HDBase-T PoE 30 W

Unit Weight: 14.419 g

Configuration: 1x1

Tab Direction: Tab Up

Current Rating: 350 mA

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 57 V

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Termination Style: Solder

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C

Number of Positions / Contacts per Port: 8P8C
