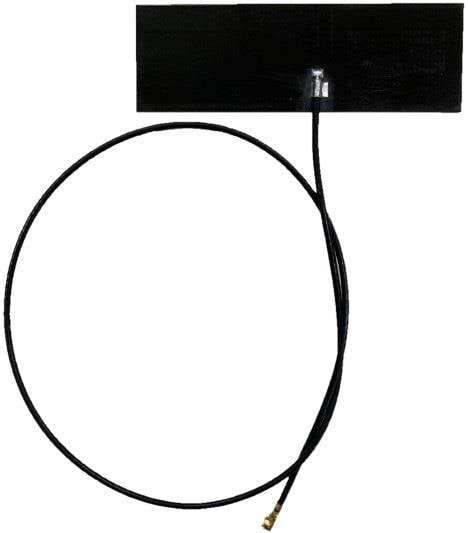

Pulse Electronics BTPA0061204G0C4A02 Internal Antenna FPC PFCB adhesive mount 4G Nb-IoT LTE CAT M1 312.3mm

Gain: 4.5 dBi

Style: Rectangular

Width: 20 mm

Height: 0.4 mm

Length: 61 mm

Frequency: 698 MHz to 960 MHz, 1.71 GHz to 2.17 GHz, 2.3 GHz to 2.7 GHz

Impedance: 50 Ohms

Cable Type: 1.37 mm Coax

Cable Length: 312.3 mm

Polarization: Linear, Vertical

Power Rating: 1 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 3 Band

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: IPEX

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 4G, NB-IoT, LTE
