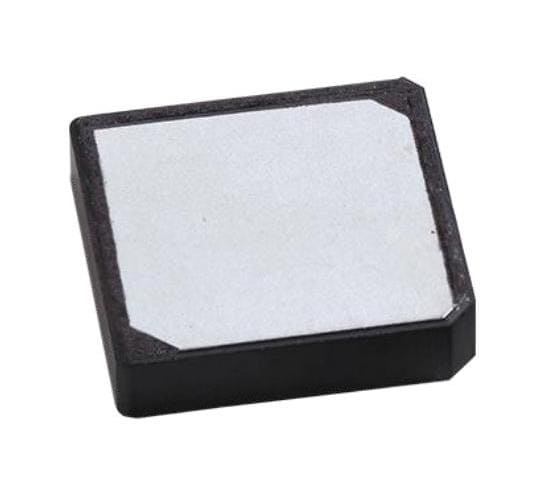

Pulse Electronics ANT1818B00BT1516S Passive Antenna 50 Ohms 1575-1602MHz PATCH ANTENNA,GPS

Gain: 1.89 dB, 2.59 dB

VSWR: 2

Style: Ceramic

Width: 18 mm

Height: 4 mm

Length: 18 mm

Bandwidth: 7 MHz

Impedance: 50 Ohms

Application: Navigation device

Unit Weight: 13.705 g

For Use With: GPS and GLONASS

Polarization: RHCP

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 1.575 GHz, 1.602 GHz

Mechanical Style: Patch

Maximum Frequency: 1.606 GHz

Minimum Frequency: 1.575 GHz

Termination Style: SMD/SMT

Antenna Connector Type: SMA Female

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
