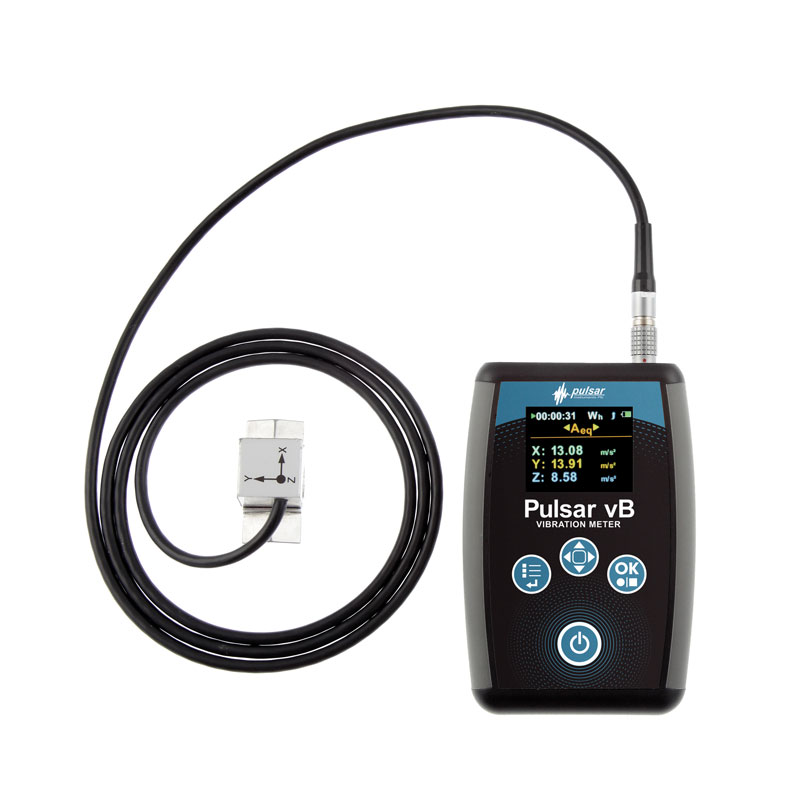

PULSAR vB Hand arm vibration meter (0.50 - 2000.0m/s2, 1 measurement channel)

Range m/s2 / g

Low

0.05 - 200.0 / 0.005 - 20.4

High

0.50 - 2000.0 / 0.50 - 204.0

Measurement Channels: One

Parameters:

Acceleration: Arms, Aeq, Amax, Peak, Vector Sum, Exposure Points

Linear Operating range: 72 d

Frequency Weighting: WH - Hand Arm Filter

Memory:

Flash memory storing up to 992 recordings

Transducer: vB0013, 10mV/g

Noise Floor:

<0.002 m/s2 Low Range

<0.020 m/s2 High Range

Display: Full Colour Graphic OLED Display (160 x 128)

Batteries:

NiMH re-chargeable cell pack

Typically 10 hours continuous use

Connections:

Input: 5 Pin Lemo Socket

AC Output: 4 Pole 3.5mm Jack Socket

Download: USB Micro B (Cable Supplied)

Recharge: DC Socket (Charger & Cable Supplied)

Environmental:

Temperature Operating Range: -10 to + 50ºC

Humidity: Up to 90% RH Non Condensing

Datasheet
