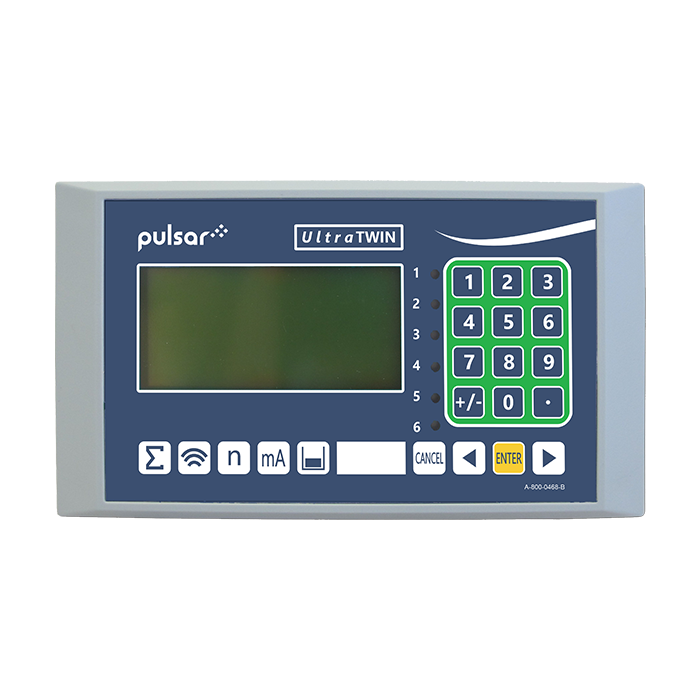

Pulsar measurement UltraTWIN Twin-channel differential level and volume monitor

Weight: 1 kg (2.2 lbs)

Cable Entry Details: 10 cable entries, 1 x M16, 5 x M20 underside, 4 x PG11 at rear

IP Rating: IP64 & 65

Operating Temperature (Electronics): -20 °C to +50 °C (-4 °F to +122 °F)

Analog Output: 2 x Isolated output 4-20mA or 0-20mA into 500 Ω (user programmable and adjustable), 0.1% resolution

Digital Outputs : Full duplex RS232 via RJ11 port

Digital Inputs: Wall = 4, Fascia = 7, normally open or normally closed, 24 V DC supply

Power Supply: 115 V AC +5%/-10% 50/60 Hz, 230 V AC +5%/-10%, 18-30 V DC

Volt Free Contacts: 6 form C (SPDT) 5 A, 240 V AC

Display: 6-digits plus 12 character text, bar graph with direction indicators, remote communicator identifier, and program/run/test mode indicators
