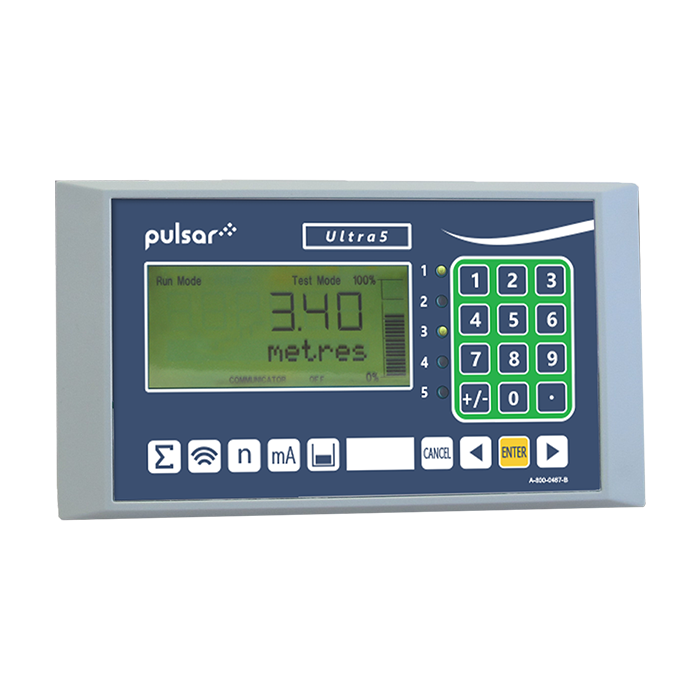

Pulsar measurement Ultra 5 Advanced ultrasonic level, flow, volume, and pump controller

MOUNTING OPTIONS

• Standard Wall Mount:

Controller Body Dimensions: 235 mm x 184 mm x 120 mm (9.3 in x 7.2 in x 4.7 in)

Weight: 1 kg (2.2 lb)

Enclosure Material / Description: Polycarbonate, flame resistant to UL91

Cable Entry Detail: 10 cable entry knock outs; 5x M20, 1 x M16 underside; 4 x 18 mm (0.7 in) dia(PG11) at rear

Enclosure Protection: IP65

• Fascia Mount:

Controller Body Dimensions: 200 mm x 112 mm x 108 mm (7.9 in x 4.4 in x 4.3 in)

Weight: 1.3 kg (2.9 lb)

Enclosure Material / Description: Stainless steel back, Polycarbonate UL94-V0 front and bezel

Cable Entry Detail: N/A

Enclosure Protection: IP64

• Rack Mount

Controller Body Dimensions: 10 HP X 160 mm D x 3U 128.5 mm H (6.3 in x 5.06 in)

Weight: 0.8 kg (1.7 lb)

Enclosure Material / Description: Aluminum Frame

Cable Entry Detail: N/A

Enclosure Protection: none

• Panel Mount

Controller Body Dimensions: 72 mm W x 144 mm H x 176 mm D (2.8 in x 5.7 in x 6.9 in)

Weight: 1.4 kg (3 lb)

Enclosure Material / Description: ABS

Cable Entry Detail: N/A

Enclosure Protection: IP65 optional

PHYSICAL: ALL MOUNTING OPTIONS

Transducer Cable Extensions: 2-core screened

Maximum Separation: Up to 1,000 m (3,280 ft)

ENVIRONMENTAL

Max. And Min.Temperature (Electronics): -20 °C to +50 °C (-4 °F to +120 °F)

APPROVALS

CE Approval: Listed in the Certificate of Conformity within the manual

Flammable Atmosphere Approval: For installation in non-flammable area only. Most compatible transducers suitable for flammable atmospheres. See sensor / transducer datasheet or brochure.

PERFORMANCE

Accuracy / Repeatability: 0.25% of the measured range or 6 mm (0.2 in), whichever is greater

Resolution: 0.1% of the measured range or 2 mm (0.08 in), whichever is greater

Min. & Max. Range: 0 mm to 40 m (0 in to 131.2 ft). Dependent on sensor used. Ability to measure 50 m (164 ft) with dB50 when modified.

Rate Response: Fully adjustable

Echo Processing: DATEM (Digital Adaptive Tracking of Echo Movement)

OUTPUTS

Analog Output: Isolated (floating) output (to 150 V) of 4-20mA or 0-20mA into 500 Ω (user programmable and adjustable) 0.1% resolution

Digital Output: Full Duplex RS232

Volt Free Contacts, Number & Rating: 5 form “C” (SPDT) rated at 5 A at 240V AC

Display: 6 digits plus 12 character text, plus bar graph with direction indicators, remote communicator identifier

and program / run / test mode indicators

INPUTS

Analog Input (Optional): Isolated (floating) input (to 150 V) 4-20mA or 0-20mA source, open circuit voltage 33 V, 22 V at 4mA, 14 V at 20mA (user programmable and adjustable) 0.1% resolution

SUPPLY

Power Supply: 105 V AC +5% / -10% 50/60Hz, 230 V AC +5% / -10% 50/60Hz, 18-36 V DC, 10W maximum power (typically 6 W)

Fuses: 100mA at 170-240 V AC, 200mA at 85-120 V AC
