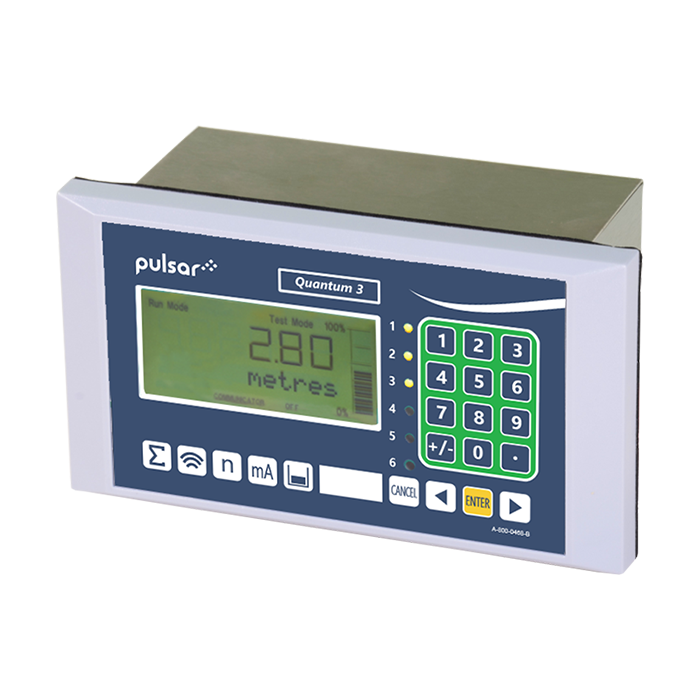

Pulsar measurement Quantum 3 Pump Controller

Controller Body Dimensions: 200 mm x 112mm (7.87 in x 4.41 in) front, 165 mm x 105 mm (6.49 in x 4.13 in) cut-out

Weight Nominal: 1.3 kg (2.9 lbs)

Case Material: Stainless steel and polycarbonate, flame resistant to UL94 V0

Operating Temperature (electronics): -20 °C to +55 °C (-4 °F to +131 °F)

Power Supply: 85-264 V AC 50/60 Hz, 22-28 V DC

Volt-free Contacts: 10 total. Relays 1-5 form C (SPDT 5 A, 220 V AC. Relays 6-10 form C (SPDT) 3 A, 220 V AC

Digital Inputs : 7 No or NC with 24V DC internal supply, available max. 20mA

Analog Output (Adjustable): 2 off Isolated output of 4-20mA or 0-20mA into 500 Ω (user-programmable and adjustable) 0.1% resolution

Serial Output: RS232 via RJ11 port

Display: 6 digits plus 12 character text, plus bar graph with direction indicators, remote communicator identifier, and program / run / test mode indicators
