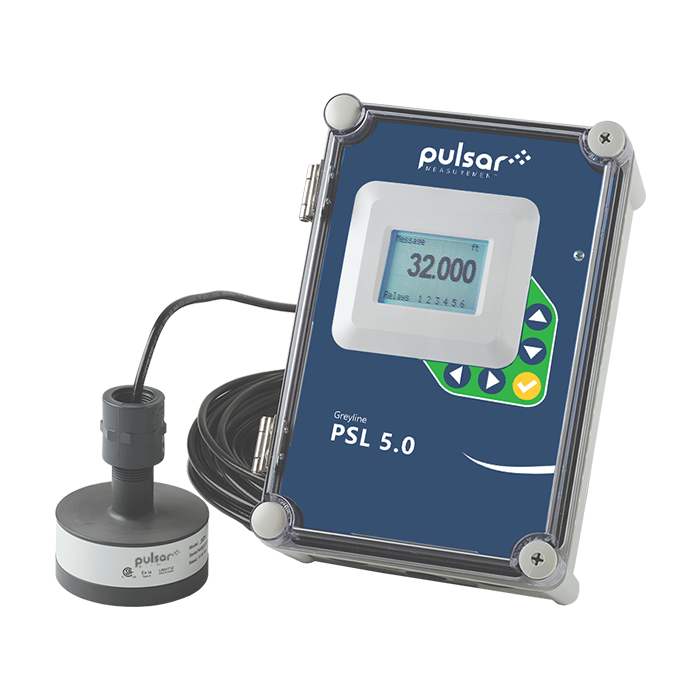

Pulsar measurement PSL 5.0 Ultrasonic Level Controller

Accuracy: ±0.25% of Range or 2 mm (0.08 in), whichever is greater

Electronics Enclosure: NEMA4X (IP66) polycarbonate with clear, shatterproof cover

Operating Temp.(Electronics): -20 °C to +60 °C (-5 °F to +140 °F)

Power Input: 100-240 V AC 50-60 Hz (see Options), 2.4-5.6 W depending on options

Analog Output: Isolated 4-20mA (1 kΩ)

Control Relays: 6 form ‘C’ dry contact Relays rated 5 A SPDT; programmable level alarm and/or pump control modes, pump alternation / sequencing, failsafe / echo-loss, air temperature alarm

Display: White, backlit matrix - displays calibration menu, relay status, runtime reports and sensor status

Calibration: Level or Range mode in selectable units

Programming: Built-in, 5-button keypad, password-protected

Approximate Shipping Weight: 5 kg (11 lb)
