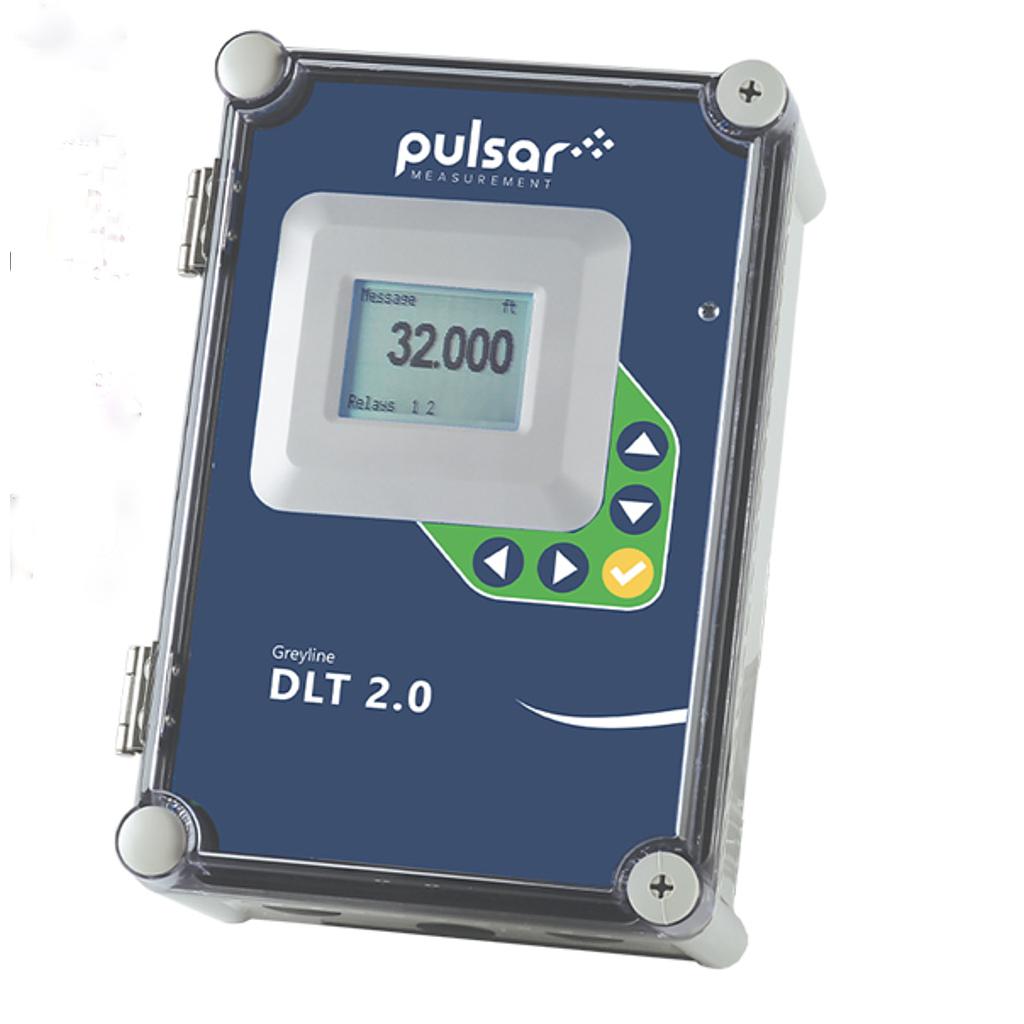

Pulsar measurement DLT 2.0 Differential Level Transmitter
Electronics Enclosure: NEMA4X (IP 66) polycarbonate with clear, shatterproof cover
Accuracy: ±0.25% of range or 2 mm (0.08 in), whichever is greater. Repeatability and Linearity: ±0.1%
Display: White, backlit matrix - displays upstream, downstream, and differential level, open channel flow and totalizer, relay states, operating mode, and calibration menu
Programming: Built-in 5-key calibrator with English, French, or Spanish language selection
Power Input: 100-240 V AC 50/60 Hz (see Options), 3 W maximum with standard features
Outputs: 3 x Isolated 4-20mA, upstream and downstream level (or open channel flow), and differential level, 1000 ohm maximum
Control Relays: 2 total, rated 5 A SPDT; programmable for level control, differential control, or flow proportional pulse
Operating Temperature (Electronics): -20 °C to 60 °C (-5 °F to 140 °F )
Approximate shipping weight: 6.8 kg (15 lbs)
