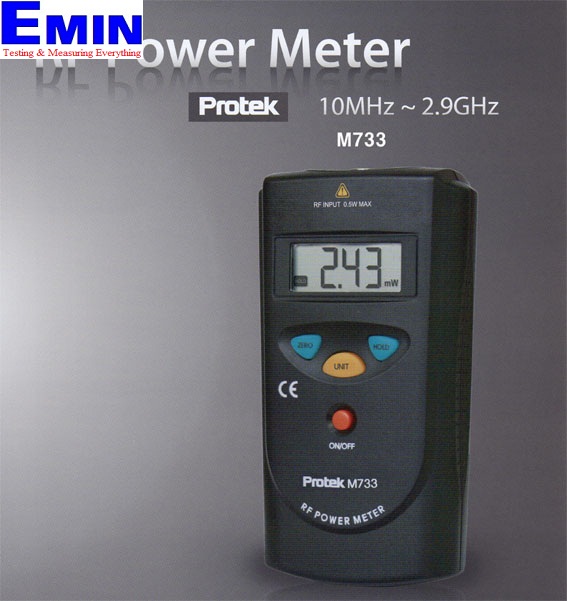

Protek M733 Frequency RF Power Meter
Frequency Range 10MHz to 2.9GHz
RF Signal Input Power 2mW to 500mW Max,
Accuracy +20°C to +30°C
±10%[mW] 10MHz to 1GHz
±15%[mW] 1GHz to 2.9GHz
+10°C to +20°C, +30°C to +40°C
±15%[mW] 10MHz to 1GHz
±20%[mW] 1GHz to 2.9 GHz
Extra Functions Auto-Scale Function
Lo BAT Message Output Function (Low Battery)
HPI Message Output Function (High Power Input)
LPI Message Output Function (Low Power Input)
LCD Type Mono, FSTN LCD
Input Connector N-Type Female, 50AOhms, Return Loss < -18dBRL
N-Type to SMA Female Adapter (Option)
Battery 6F22UT(006PUT) DC +9V Battery X 2pcs
Operating Temperature +10 to +40°C
Operating Humidity 35RH to 85RH (RF: Relative Humidity)
Storage Temperature -20 to +70°C
Dimension (Approximately) 89mm(W) X 160mm(H) X 45.7mm(D)
Weight 900g Max. (2 lbs.)
Features
- Meter Zero, Auto Range functions
- Lightweight hand-held instrument
- Frequency Range: 10MHz to 2.9GHz
- 3.5 Digits LCD
- Hold / Run Modes
- CW Power 0.1mW to 500mW (limited duration up to 1W)
- High-Impact case, rugged design
- Full-scale ranges: 1.999mW, 1.99mW, 199.9mW, 1999mW
- Low Battery detect and display
- Unit display: dBmV, mV, dBm, mW
Applications:
- CATV testing and troubleshooting
- Wireless consumer products testing
- IF and RF system
- RF amplifier testing
- Base station testing and troubleshooting
- Cellular and PCS phones
- Two-way radio
- Manufacturing
- Field Service
- Trunk radio
| Frequency Range | 10MHz to 2.9GHz |
| RF Signal Input Power | 2mW to 500mW Max, |
| Accuracy | +20°C to +30°C ±10%[mW] 10MHz to 1GHz ±15%[mW] 1GHz to 2.9GHz +10°C to +20°C, +30°C to +40°C ±15%[mW] 10MHz to 1GHz ±20%[mW] 1GHz to 2.9 GHz |
| Extra Functions | Auto-Scale Function Lo BAT Message Output Function (Low Battery) HPI Message Output Function (High Power Input) LPI Message Output Function (Low Power Input) |
| LCD Type | Mono, FSTN LCD |
| Input Connector | N-Type Female, 50AOhms, Return Loss < -18dBRL N-Type to SMA Female Adapter (Option) |
| Battery | 6F22UT(006PUT) DC +9V Battery X 2pcs |
| Operating Temperature | +10 to +40°C |
| Operating Humidity | 35RH to 85RH (RF: Relative Humidity) |
| Storage Temperature | -20 to +70°C |
| Dimension (Approximately) | 89mm(W) X 160mm(H) X 45.7mm(D) |
| Weight | 900g Max. (2 lbs.) |
