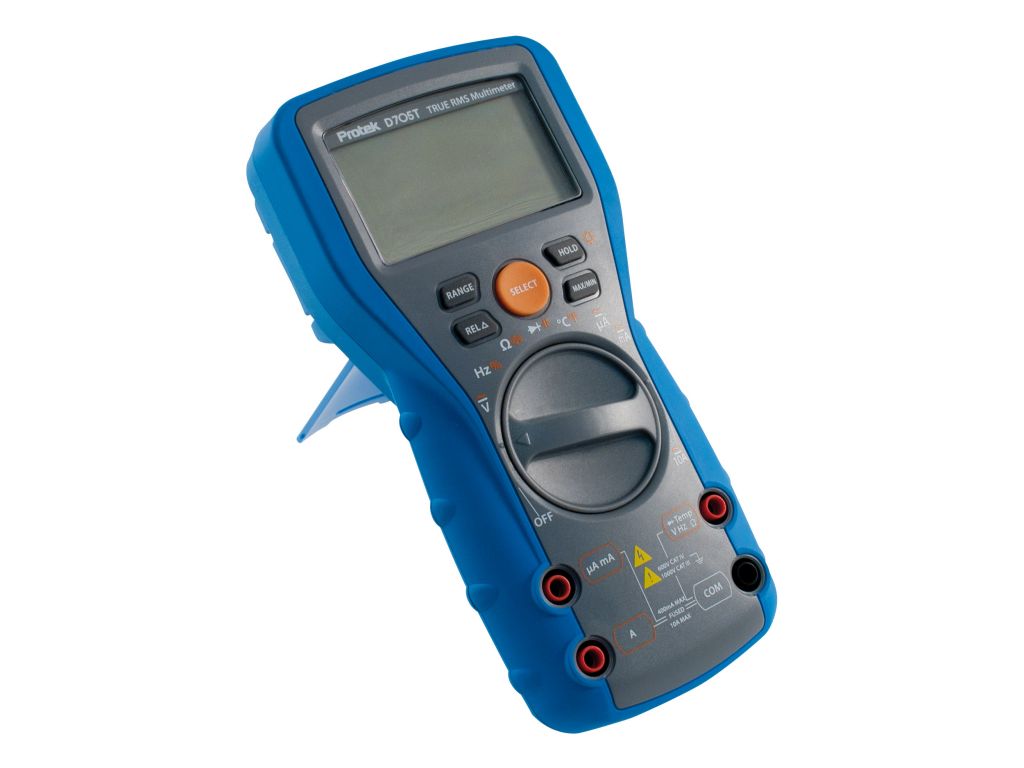

PROTEK D705T Digital Multimeter
ManufacturerPROTEK(View more products from this manufacturer)
ModelD705T
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Specifications of the Protek D705 & D705T | ||||||||
| DC Voltage | Range | 500mV | 5V | 50V | 500V | 1000V | ||
| Resolution | 0.1mV | 0.001mV | 0.01V | 0.1V | 1V | |||
| Accuracy | ±(0.09% + 2d) | ±(0.09% + 5d) | ±(0.09% + 2d) | ±(0.09% + 2d) | ±(0.09% + 2d) | |||
| AC Voltage | Range | 500mV | 5V | 50V | 500V | 1000V | ||
| Resolution | 0.1mV | 0.001mV | 0.01V | 0.1V | 1V | |||
| Accuracy | (45Hz ~ 500Hz) | ±(0.8% + 5d) True RMS | ||||||
| (500Hz ~ 1KHz) | ±(1.0% + 5d) True RMS | |||||||
| DC Current | Range | 500μA | 5000μA | 50mA | 400mA | 5A | 10A | |
| Resolution | 0.1μA | 1μA | 10μA | 100μA | 1mA | 10mA | ||
| Accuracy | ±(1.0% + 3d) | |||||||
| AC Current | Range | 500μA | 5000μA | 50mA | 400mA | 5A | 10A | |
| Resolution | 0.1μA | 1μA | 10μA | 100μA | 1mA | 10mA | ||
| Accuracy | (45Hz ~ 500Hz) | ±(0.8% + 5d) True RMS | ±(1.5% + 10d) True RMS | ±(0.8% + 5d) True RMS | ||||
| (500Hz ~ 1KHz) | ±(2.0% + 5d) True RMS | ±(2.0% + 10d) True RMS | ±(2.0% + 5d) True RMS | |||||
| Resistance | Range | 500Ω | 5kΩ | 50kΩ | 500kΩ | 5MΩ | 50MΩ | |
| Resolution | 0.1Ω | 0.001kΩ | 0.01kΩ | 0.1kΩ | 0.001MΩ<Ω | 0.01MΩ | ||
| Accuracy | ±(1.0% + 5d) | ±(1.5% + 10d) | ||||||
| Diode Test | Range | 2V | ||||||
| Resolution | 0.001V | |||||||
| Accuracy | ±(2.0% + 5d) | |||||||
| Temperature | Range | -40°C ~ 400°C | -40&def;F ~ 752°F | |||||
| Resolution | 0.1°C | 0.1°F | ||||||
| Accuracy | ±(3.0% + 3.0°C) | ±(3.0% + 5.4°C) | ||||||
| Frequency | Range | 9.999Hz | 99.99Hz | 999.9Hz | 9.999kHz | 99.99kHz | 999.9kHz | |
| Resolution | 0.001 Hz | 0.01 Hz | 0.1 Hz | 1 Hz | 10 Hz | 100 Hz | ||
| Accuracy | ±(0.1% + 3d) | |||||||
| Sensitivity | Vpp = ±300mV (Square wave Input) | |||||||
| Duty | Range | 1.0% ~ 99.0% | ||||||
| Resolution | 0.1% | |||||||
| Accuracy | 0.5 Hz to 300 KHz (plus width < 3 μS) | (0.1% + 0.05 per KHz + 1 count) for ± 600m V p-p Square wave input | ||||||
| Capacitance | Range | 40nF | 400nF | 4μF | 40μF | 400μF | 4000μF | |
| Resolution | 0.01nF | 0.1nF | 0.001μF | 0.01μF | 0.1μF | 1μF | ||
| Accuracy | ± (3.0% + 10d) | ± (3.5% + 30d) | ||||||
| Continuity Test | Range | 500 Ω | Threshold | 1 msec | ||||
| Resolution | 0.1 Ω | |||||||
| Accuracy | ± (1.0% + 5d) | Approx. 25Ω | 1 msec | |||||
| Specifications of the Protek D705 & D705T | ||||||||
| DC Voltage | Range | 500mV | 5V | 50V | 500V | 1000V | ||
| Resolution | 0.1mV | 0.001mV | 0.01V | 0.1V | 1V | |||
| Accuracy | ±(0.09% + 2d) | ±(0.09% + 5d) | ±(0.09% + 2d) | ±(0.09% + 2d) | ±(0.09% + 2d) | |||
| AC Voltage | Range | 500mV | 5V | 50V | 500V | 1000V | ||
| Resolution | 0.1mV | 0.001mV | 0.01V | 0.1V | 1V | |||
| Accuracy | (45Hz ~ 500Hz) | ±(0.8% + 5d) True RMS | ||||||
| (500Hz ~ 1KHz) | ±(1.0% + 5d) True RMS | |||||||
| DC Current | Range | 500μA | 5000μA | 50mA | 400mA | 5A | 10A | |
| Resolution | 0.1μA | 1μA | 10μA | 100μA | 1mA | 10mA | ||
| Accuracy | ±(1.0% + 3d) | |||||||
| AC Current | Range | 500μA | 5000μA | 50mA | 400mA | 5A | 10A | |
| Resolution | 0.1μA | 1μA | 10μA | 100μA | 1mA | 10mA | ||
| Accuracy | (45Hz ~ 500Hz) | ±(0.8% + 5d) True RMS | ±(1.5% + 10d) True RMS | ±(0.8% + 5d) True RMS | ||||
| (500Hz ~ 1KHz) | ±(2.0% + 5d) True RMS | ±(2.0% + 10d) True RMS | ±(2.0% + 5d) True RMS | |||||
| Resistance | Range | 500Ω | 5kΩ | 50kΩ | 500kΩ | 5MΩ | 50MΩ | |
| Resolution | 0.1Ω | 0.001kΩ | 0.01kΩ | 0.1kΩ | 0.001MΩ<Ω | 0.01MΩ | ||
| Accuracy | ±(1.0% + 5d) | ±(1.5% + 10d) | ||||||
| Diode Test | Range | 2V | ||||||
| Resolution | 0.001V | |||||||
| Accuracy | ±(2.0% + 5d) | |||||||
| Temperature | Range | -40°C ~ 400°C | -40&def;F ~ 752°F | |||||
| Resolution | 0.1°C | 0.1°F | ||||||
| Accuracy | ±(3.0% + 3.0°C) | ±(3.0% + 5.4°C) | ||||||
| Frequency | Range | 9.999Hz | 99.99Hz | 999.9Hz | 9.999kHz | 99.99kHz | 999.9kHz | |
| Resolution | 0.001 Hz | 0.01 Hz | 0.1 Hz | 1 Hz | 10 Hz | 100 Hz | ||
| Accuracy | ±(0.1% + 3d) | |||||||
| Sensitivity | Vpp = ±300mV (Square wave Input) | |||||||
| Duty | Range | 1.0% ~ 99.0% | ||||||
| Resolution | 0.1% | |||||||
| Accuracy | 0.5 Hz to 300 KHz (plus width < 3 μS) | (0.1% + 0.05 per KHz + 1 count) for ± 600m V p-p Square wave input | ||||||
| Capacitance | Range | 40nF | 400nF | 4μF | 40μF | 400μF | 4000μF | |
| Resolution | 0.01nF | 0.1nF | 0.001μF | 0.01μF | 0.1μF | 1μF | ||
| Accuracy | ± (3.0% + 10d) | ± (3.5% + 30d) | ||||||
| Continuity Test | Range | 500 Ω | Threshold | 1 msec | ||||
| Resolution | 0.1 Ω | |||||||
| Accuracy | ± (1.0% + 5d) | Approx. 25Ω | 1 msec | |||||
