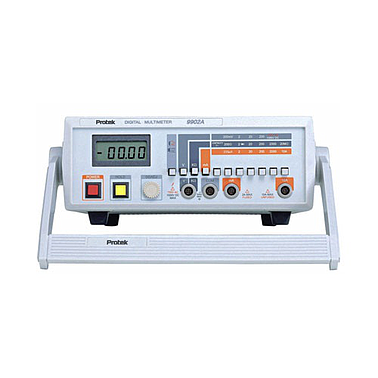

Protek 9902A 1000V Benchtop Digital Multimeter
ManufacturerPROTEK(View more products from this manufacturer)
Model9902A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Specifications of the Protek 9902A | |||||||
| DC Voltage | Range | 200mV | 2V | 20V | 200V | 1000V | |
| Resolution | 10 μV | 100 μV | 1 mV | 10 mV | 100 mV | ||
| Accuracy | ±(0.05% rdg + 2d) | ±(0.07% rdg + 2d) | |||||
| AC Voltage | Range | 200mV | 2V | 20V | 200V | 750V | |
| Resolution | 10 μV | 100 μV | 1 mV | 10 mV | 100 mV | ||
| Accuracy | ±(0.05% rdg + 10d) | ±(0.075% rdg + 10d) | |||||
| DC Current | Range | 200 μA | 2 mA | 20 mA | 200 mA | 2000 mA | 10 A |
| Resolution | 10 μA | 0.1 μA | 1 μA | 10 μA | 100 μA | 1 mA | |
| Accuracy | ± (0.3% rdg + 3d) | ± (1% rdg + 3d) | |||||
| AC Current | Range | 200 μA | 2 mA | 20 mA | 200 mA | 2000 mA | 10 A |
| Resolution | 10 μA | 0.1 μA | 1 μA | 10 μA | 100 μA | 1 mA | |
| Accuracy | ±(0.075% rdg + 10d) | ±(1% rdg + 10d) | |||||
| Resistance | Range | 200 Ω | 2K Ω | 20K Ω | 200K Ω | 2M Ω | 20M Ω |
| Resolution | 10mΩ | 100mΩ | 1 Ω | 10 Ω | 100 Ω | 1K Ω | |
| Accuracy | ±(0.5% rdg + 10d) | ±(0.75% rdg + 10d) | |||||
| General Specifications | Power Requirement | 115V/230V ± 50/60 Hz | |||||
| Dimensions (W x D x H) | 250 x 267 x 76mm | ||||||
| Weight | Approx. 5.5lb (2.5Kg) | ||||||
| Specifications of the Protek 9902A | |||||||
| DC Voltage | Range | 200mV | 2V | 20V | 200V | 1000V | |
| Resolution | 10 μV | 100 μV | 1 mV | 10 mV | 100 mV | ||
| Accuracy | ±(0.05% rdg + 2d) | ±(0.07% rdg + 2d) | |||||
| AC Voltage | Range | 200mV | 2V | 20V | 200V | 750V | |
| Resolution | 10 μV | 100 μV | 1 mV | 10 mV | 100 mV | ||
| Accuracy | ±(0.05% rdg + 10d) | ±(0.075% rdg + 10d) | |||||
| DC Current | Range | 200 μA | 2 mA | 20 mA | 200 mA | 2000 mA | 10 A |
| Resolution | 10 μA | 0.1 μA | 1 μA | 10 μA | 100 μA | 1 mA | |
| Accuracy | ± (0.3% rdg + 3d) | ± (1% rdg + 3d) | |||||
| AC Current | Range | 200 μA | 2 mA | 20 mA | 200 mA | 2000 mA | 10 A |
| Resolution | 10 μA | 0.1 μA | 1 μA | 10 μA | 100 μA | 1 mA | |
| Accuracy | ±(0.075% rdg + 10d) | ±(1% rdg + 10d) | |||||
| Resistance | Range | 200 Ω | 2K Ω | 20K Ω | 200K Ω | 2M Ω | 20M Ω |
| Resolution | 10mΩ | 100mΩ | 1 Ω | 10 Ω | 100 Ω | 1K Ω | |
| Accuracy | ±(0.5% rdg + 10d) | ±(0.75% rdg + 10d) | |||||
| General Specifications | Power Requirement | 115V/230V ± 50/60 Hz | |||||
| Dimensions (W x D x H) |
250 x 267 x 76mm | ||||||
| Weight | Approx. 5.5lb (2.5Kg) | ||||||
