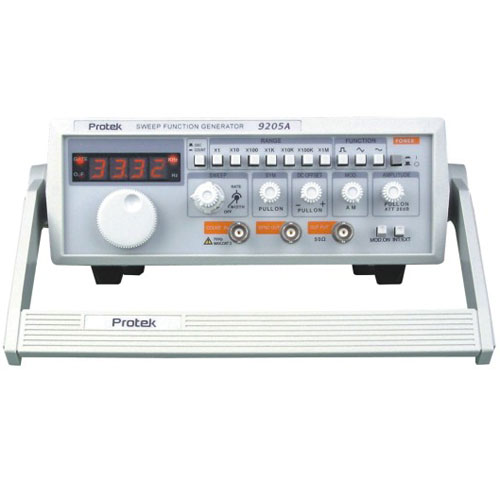

The Protek 9205A Sweep Function Generator handles Sine, Triangle, Square, Pulse, Ramp and Slesed Sine Waveform. AM Modulation and frequency counter function is included.
| Specification | ||
| Output | Frequency Range | 0.03 Hz to 3 MHz (7 Ranges) |
| Accuracy | Over 1Hz ±1 count ± Time Base Error | |
| Amplitude | 1Vp to 20Vp (Open Circuit), 0.5V to 5Vp (50Ω) | |
| Attenuation | Fixed 20dB ±1dB Continuity Variable | |
| Impedance | 50Ω ±5% | |
| Sine Wave | Flatness | ±3dB ~ 3 MHz |
| Distortion | 2% (10Hz ~ 100KHz) | |
| Square Wave | Rise/Fall Time | 100ns or Less |
| Triangle Wave | Linearity | 99% or More ~ 100KHz |
| Symmetry Variation | 1:1 ~ 4:1 (1MHz)/ 1:1 ~ 2:1 (2.5MHz) | |
| VCF Input | 0 ~ 10V DC | |
| Sweep Function | Mode | Linear |
| Width | 1:1 ~ 100:1 | |
| Time | 20ms ~ 2s | |
| Frequency Counter |
Range | 10Hz ~ 3MHz |
| Accuracy | 0.01% ± 1 Count | |
| Max. Input Voltage | 70Vp-p | |
| Input Impedance | 1MΩ | |
| AM Modulation | 0 ~ 100%, 10V Max. Input | |
| General | Power | 100/120/220/230V AC ±10%, 50/60Hz, 14W |
| Dimension (W x D x H) | 250 x 267 x 76mm | |
| Weight | Approx 2.5Kg | |
