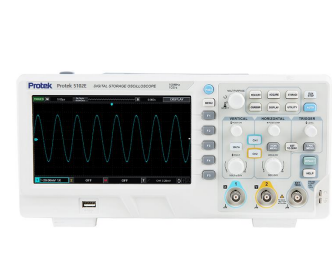

PROTEK 5102E Digital Storage Oscilloscope (2CH, 100MHz, 64kpts, 1GSa/s)

Bandwidth: 100 MHz

Analog Input Channels: 2 CH + EXT

Real Time Sampling rate: 1GSa/s (Each Channel: 500 MSa/s)

Memory Depth: 64 kpts

Rise Time: ≤ 3.5 ns

Input Impedance: (1MΩ±2%)//(18pF±3pF)

Bandwidth limit: 20 MHz

Waveform capture rate: 5.000 wfms/s

Trigger Mode: Edge, pulse, alternate, Slope, video

Interface: USB-Host, USB-Device, Pass/Fail

Display: 7” TFT LCD, RGB 800 x 480 pixels

Size(W x H x D): 336 × 164 × 108mm

Weight: 3.5 kg

Standard Accessories: Passive Probe kit, USB Interface Cable, AC Power Cable, GUI CD (in manual)

Datasheet
