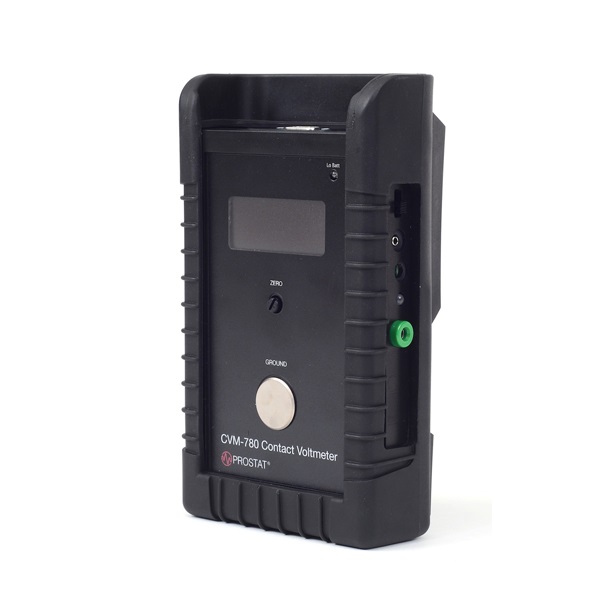

PROSTAT CVM-780 Electrostatic Contact Voltmeter (0 ~ ±525V)

Intended operating range: 0 to ±525 volts

Resolution: 1 volt, 3 digit display

Circuit accuracy: <±1%

Response time: Approximately 1ms for a voltage step of 200V at the probe tip to the monitor output.

Digital display update: 3 readings per second

Input charge/measurement: Approximately 100 femptocoulomb/volt (1.0x10-13 C/V)

Input impedance: ≥1014 ohm in Parallel with <1pF Capacitance

Monitor output: Scale factor: 10,000:1; 100uV/V (Compatible with Prostat PGA-710B Autoanalysis System™)

Recording Deviation: Typically < ±10 volts at ± 500 Volts

Probe Tips:

Metal: Nominally 0.95 and 0.45 inch

Ceramic: 0.90 and 0.40 inch ±0.05”

Portable Operation: Approximately 3.5 hours on Full Battery Charge (Operates during Battery Charge)

Power: 4 each Energizer NH15-2500 Nickel-Metal Hydride rechargeable batteries (AA Size)

Charger: Universal 90 to 264 Volts, 47 to 63 Hz

Meter Dimensions without boot (WxHxD): 10.8 cm x 4.0 cm x 16.5 cm / 4.25 in x 1.57 in x 6.5 in

Meter Dimensions with boot (WxHxD): 10.8 cm x 6.0 cm x 19.1 cm / 4.25 in x 2.36 in x 7.5 in

Probe Dimensions (WxHxL): 3.7 cm x 2.0 cm x 23.5 cm / 1.5 in x 0.78 in x 9.25 in

Meter Weight with boot: 24 oz (1.5 lb)

Probe Weight: 3.6 oz (0.225 lb)
