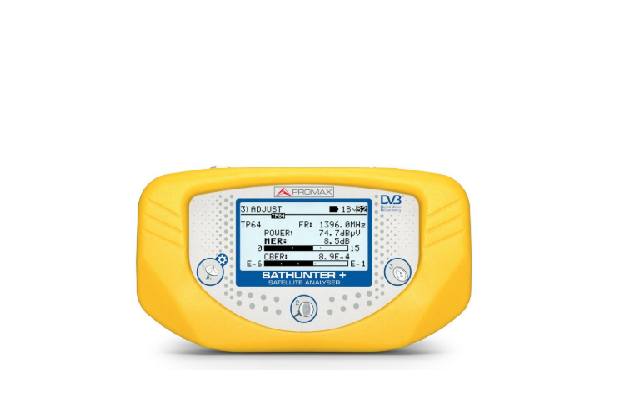

Promax SATHUNTER+ DVB-S/S2 and DSS Satellite hunter

Manufacturer: Promax

Model:SATHUNTER+

Origin: England

Warranty: 12 months

MECHANICAL FEATURES

Dimensions: 180 mm (W) x 95 mm (H) x 50 mm (D)

Weight: 480 g.

TUNING

Frequency range: 950 MHz to 2150 MHz

Measurement points: 50 maximum

RF INPUT

Impedance :75 Ω

Connector: Universal, including BNC, DIN and F interchangeable adapter

Level range: 30 dBµV to 110 dBµV

Maximum signal level: 120 dBµV

DVB-S SIGNAL PARAMETERS

Symbol rate: 2 to 45 Mbauds

Roll-off (α) factor of Nyquist filter: 0.35

Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8

Spectral inversion Selectable: ON, OFF

DVB-S2 SIGNAL PARAMETERS

Symbol rate (QPSK): 2 to 45 Mbauds

Symbol rate (8PSK): 2 to 45 Mbauds

Roll-off (α) factor of Nyquist filter: 0.20, 0.25 and 0.35

Code Rate (QPSK): 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Code Rate (8PSK): 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

Spectral inversion Selectable: ON, OFF

DVB-S / S2 MEASURES Power: 40 to 100 dBµV

0 to 25 dB

CBER: 1E-6 to 1E-1

VBER (DVB-S only): 1E-8 to 1E-3

LBER (DVB-S2 only): 1E-8 to 1E-3

SIGNAL PARAMETERS

Spectral inversion: Automatic

Quality level for acceptance: Definable by user

Initial values: MER = 5 dB

Displayed information: Satellite’s Azimuth and orbital position if it is detected. Service name,

the 32 first services and network or bouquet, if it is detected.

Visual indication of DVB-S or DVB-S2 synchronized signal.

Configuration of measurement points: By serial connection to PC (cable and program included)

EXTERNAL UNITS POWER SUPPLY: Through the RF input connector

Output voltage: 13 V, 18 V ± 1 V

Maximum output current: 300 mA

22 kHz signal: Selectable

Voltage: 0.6 V ± 0.2 V

Frequency: 22 kHz ± 4 kHz

BACK-LIGHT DISPLAY: Automatic

POWER SUPPLY

Battery: 7.4 V 2.2 Ah Li-Ion battery

Low battery indication: Acoustic indication and a message on the display

Charger: Built-in. It disconnects the powering when the charging process ends

Autonomy: 80 min. typically, powering a universal LNB and identifying a signal continuously

Charging time: 100 min. approx.

Mains Adapter: 90 - 250 V/50-60 Hz (included), 12 V DC, 20 W

ACCESSORIES: Mains power adapter, Car lighter adapter, F to BNC/DIN/F adapters,

Mains cord, USB 2.0 connector cable, Rechargeable Li-Ion battery,

Carrying suitcase, Carrying belt, Case (optional)

Datasheet
