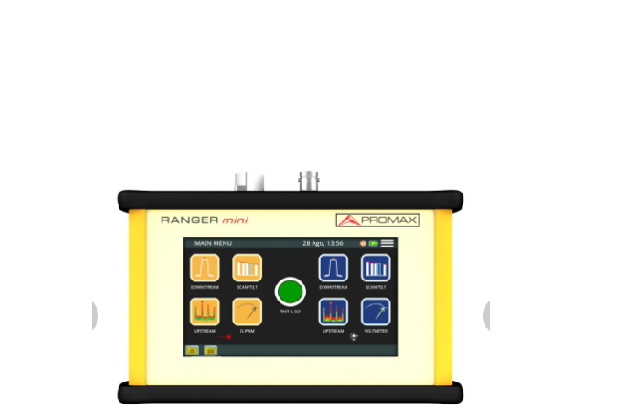

Promax RANGER mini Fibre-Coaxial DOCSIS analyzer

Manufacturer: Promax

Model:RANGER mini

Origin: England

Warranty: 12 months

SPECTRUM ANALYZER:Covers DOCSIS 3.0 and DOCSIS 3.1 RF requirements

Frequency margin: From 5 to 2700 MHz

Resolution: 10 kHz

Resolution bandwidth: 220 kHz / 2 MHz

SPAN: From 10 MHz to Full band

LEVEL MEASUREMENT

Dynamic range: -50 to -60

Measuring range: 0.1 dB

Accuracy: ±2 dB

Input impedance: 75 Ω

Units: dBmV, dBµV, dBm

DOCSIS

Built-in cablemodem:

Downstream analyzer

Spectrum & power measurement: DOCSIS 2.0 / DOCSIS 3.0 / DOCSIS 3.1

MER and BER: DOCSIS 2.0 / 3.0. MER estimated: DOCSIS 3.1

Constellation: DOCSIS 3.0 / 3.1

DOCSIS bonding group

Cable Modem Emulation:

Dowstream Tuning: 32 channels

Upstream spectrum analyzer: From 5 to 85 MHz

DIGITAL CHANNEL ANALYZER

Frequency band: From 10 to 2700 MHz

BER, MER, Power: DVB-C/C2, DVB-T, QAM Annex A/B/C, ISDB-T, J.382

Constellation: DVB-C/C2, DVB-T, QAM Annex A/B/C, ISDB-T, J.382

SATELLITE CHANNEL ANALYZER

Frequency band: From 950 to 2150 MHz

BER, MER, Power: DVB-S, DVB-S2

Constellation: DVB-S, DVB-S2

LNB supply: 13 V / 18 V

OPTICAL FIBRE INPUT: Optional

Optical power meter: From 1100 to 1700 nm

Wavelength band power range: -50 dBm to 4 dBm

Calibrated wavelengths: 1310, 1490 and 1550 nm

Optical to RF converter

RF band: From 45 to 2700 MHz

RF functions: Spectrum and Downstream analyzer

ANALOG CHANNEL ANALYZER

Frequency band: From 10 to 2700 MHz

Measurements: Level, C/N, CTB-CSO, HUM

Audio demodulation: FM

INPUTS AND OUTPUTS

RF input connector: F-type, replaceable

Voltmeter: AC/DC. From 5 to 1000 V

Connectivity: Ethernet, USB, mini-USB

MAIN FUNCTIONS : Spectrum analyzer

Upstream and Return path analyzer

SCAN / TILT 

Voltmeter, RF power meter

TEST & GO T

Screenshots, Photo gallery

Datalogger

BATTERY: 7.2 V / 3 Ah Li-Po

Battery operation time: > 4 h continuous use

External supply: 12 V

INCLUDED ACCESSORIES: DC power adaptor + Power cord

Input adapter (“F”/f to “F”/f) Input adapter (“F”/f to “F”/f)

Carrying bag, Transport case Quick reference guide

MECHANICAL FEATURES

Dimensions :177 (W) x 117 (H) x 30 (D) mm

Weight: 700 kg
