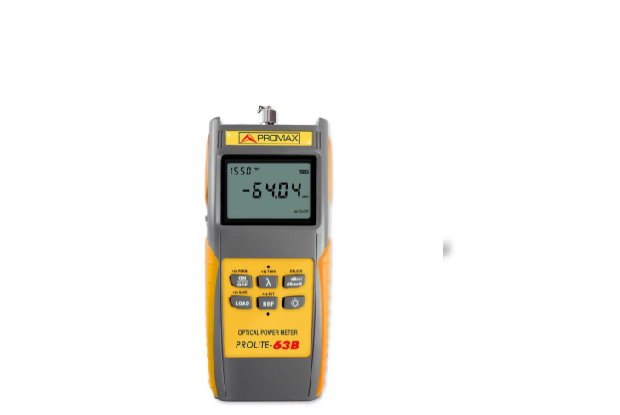

Promax PROLITE-63B Low cost optical power meter

Manufacturer: Promax

Model:PROLITE-63B

Origin: England

Warranty: 12 months

SPECIFICATIONS

Calibrated Wavelengths: 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm

Detector Type: InGaAs

Accuracy: (*) ±0.2 dB ±1 nW

Resolution: 0.01 dB

Linearity: ±5 %

Back Light: Yes

Reference Value: Yes

Measuring Range: -70 to +10 dBm @1550nm

USB Interface: Yes

Data Storage: Yes

Wavelength Recognize: ≥ -40dB

Tone Detection: (Hz) 270, 1K, 2K ≥ -40dB

POWER SUPPLY: 4 x Ni-MH 2500 mAh batteries or 6 V AC/DC Adaptor

Auto Power Off: Yes

MECHANICAL FEATURES

Dimensions: W. 76 x H. 160 x D. 45 mm

Weight: 270 g
