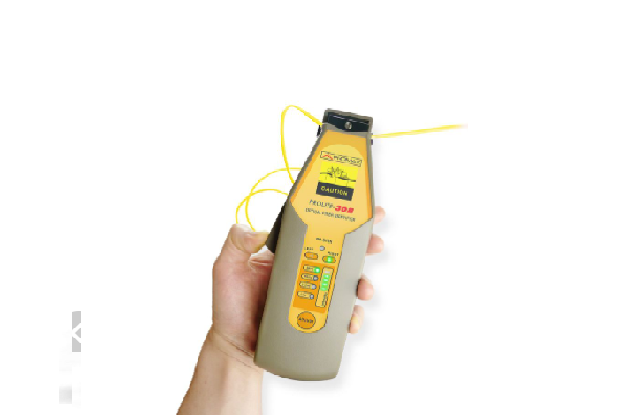

Promax PROLITE-30B Optical fibre identifier (900~1650nm)

Manufacturer: Promax

Model:PROLITE-30B

Origin: England

Warranty: 12 months

SPECIFICATIONS

Recognizable Wavelength Range: 900 to 1650 nm

Recognizable signal type: CW, 2 kHz, 1 kHz, 270 Hz ±5%

Detector Type: InGaAs 2 pcs

Clamp Type: H0.9/0.25 for bare fibers ; H2.0/3.0 for jacketed fiber

Sensitivity

Continuous wave: +11 dB to -20 dBm (1310 nm); +11 dB to -30 dBm (1550 nm)

Modulated signal: +11 dB to -10 dBm (1310 nm); +11 dB to -18 dBm (1550 nm)

LED Indicator: Signal traffic, signal frequency (2 kHz, 1 kHz or 270 Hz), signal intensity (5 grades),

low battery

POWER SUPPLY: 2 x 1.5 AA batteries

MECHANICAL FEATURES

Dimensions: W. 62 x H. 202 x D. 36 mm

Weight: 270 g
