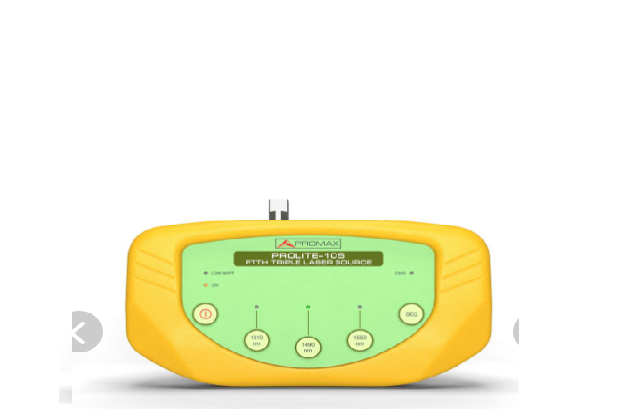

Promax PROLITE-105 Triple wavelength LASER source (1310nm, 1490nm&1550nm)

Manufacturer: Promax

Model:PROLITE-105

Origin: England

Warranty: 12 months

SPECIFICATIONS

Wavelengths generated 1310 nm, 1490 nm and 1550 nm

Tolerance: ± 10 nm a 25 °C

Spectral width (DFB laser): < 1nm

Spectral drift: 0.1 nm/°C typ.

Output connector: Tipo SC / APC

Output power: 0 dBm ± 1dB on SM fibre

Stability / time: (10 min Warmup)

1 h: 0.1 dB at temperatures ±1 °C from 0 to 40 °C

8 h: 0.2 dB at 25 °C

Stability / temperature: 1 dB typ.

From 0 °C to 40 °C (10 min Warmup)

INTERNAL MODULATION

1310 nm 270 Hz

1490 nm 1 kHz

1550 nm 2 kHz

POWER SUPPLY

Battery: Li-Ion battery

Low Battery Indicator: LED light indicator

Battery operation time: 25 h. approx. in SEQ mode

External

Voltage: 12 V DC

Power Consumption: 12 W

Network charging adaptor: From 90 V to 250 V; 50-60 Hz (included)

MECHANICAL FEATURES

Dimensions: 180 mm (W) x 95 mm (H) x 50 mm (D)

Weight: 500 g

INCLUDED ACCESORIES Car lighter adapter, Mains adapter 90-250 V AC, Power cable CEE-7,

Carrying case
