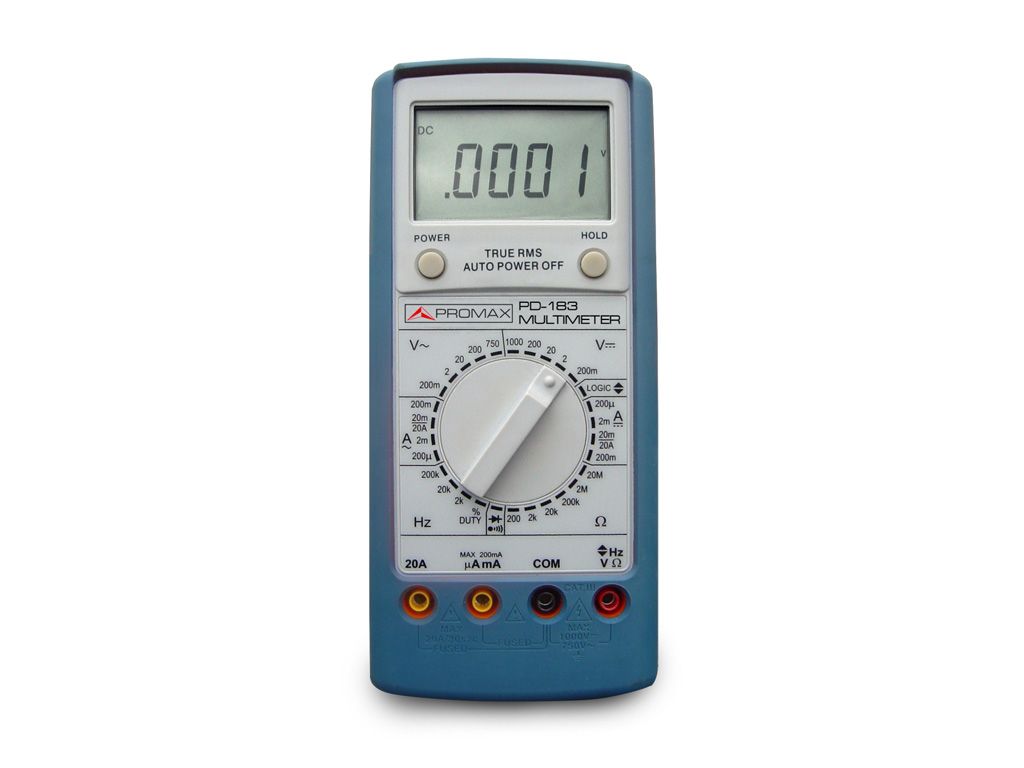

Promax PD-183 Digital Multimeter

Voltage

DC Volts: 200 mV, 2 V, 20 V, 200 V, 1000 V ± 0.05%

AC Volts: 200 mV, 2 V, 20 V, 200 V, 750 V ±1% (50 ~ 2 kHz)

Current

DC Current: 200 µA, 2 mA, 20 mA, 200 mA, 20 A ± 0.5 %

AC Current: 200 µA, 2 mA, 20 mA, 200 mA, 20 A ± 1.2%

(50 ~ 1 kHz)

Resistance: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ ± 0.15 %

Frequency: 2 kHz, 20 kHz, 200 kHz ± 0.5%

Duty Cycle: 0 to 90%. 40 Hz to 20 kHz ±2 %

More features: Continuity test, Diode test, Logic test, DATA hold

Resolution: 10 µV, 0.01 µA, 0.01 Ω, 0.1 Hz
