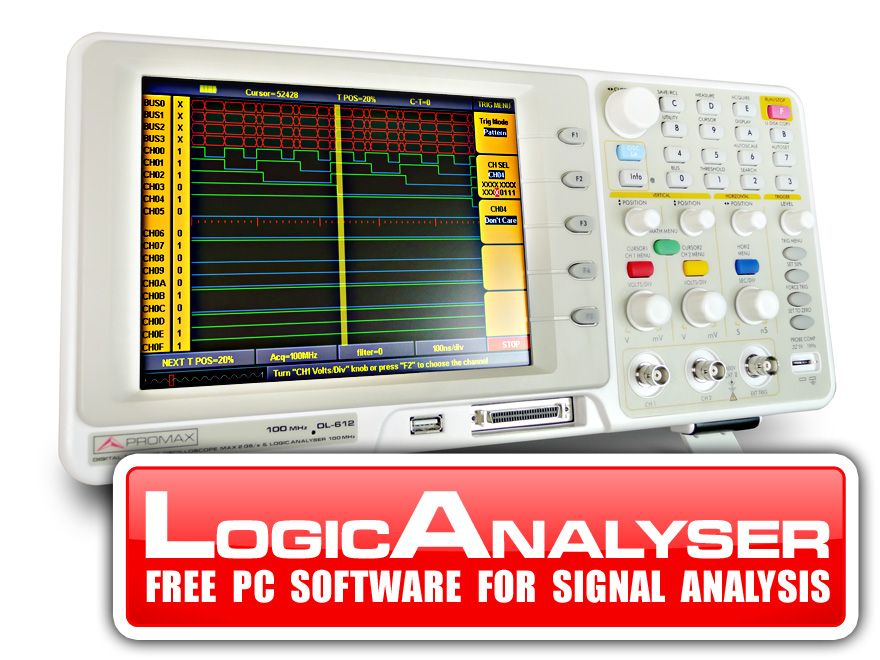

Promax OL-612 Digital Oscilloscope (2 CH, 100MHz, 2GS/s)

Bandwidth: 100 MHz

Sample rate: 2 GS/s

Channels: 2 + 1 (external)

Horizontal scale (s/div): From 2 ns/div to 100 s/div, 1-2-5 steps

Trigger: Edge, Pulse, Video, Slope, Alternate

Record length: 2 M max

Screen:8” LCD, TFT display, 640x480 pixels

Dimensions: 370 (W.) x 180 (H.) x 120 (D.) mm

Weight (without package): 2.20 kg

Included accessories: Passive probe (x2), Power cord, USB cable, Quick guide, CD-ROM

16 CHANNEL LOGIC ANALYSER

Sample rate (real time): From 20 S/s to 1 GS/s

Bandwidth: 200 MHz

Channels: 16

Record length: Max 4M per channel

Input impedance: 660 kΩ ± 5%, in parallel with 15 ±5 pF
